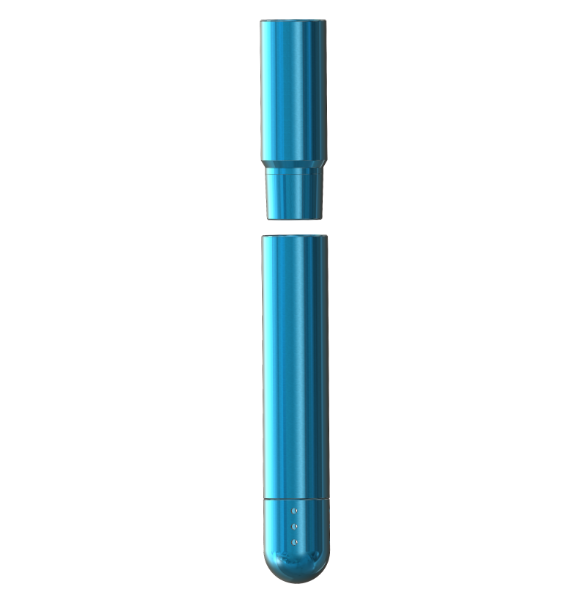

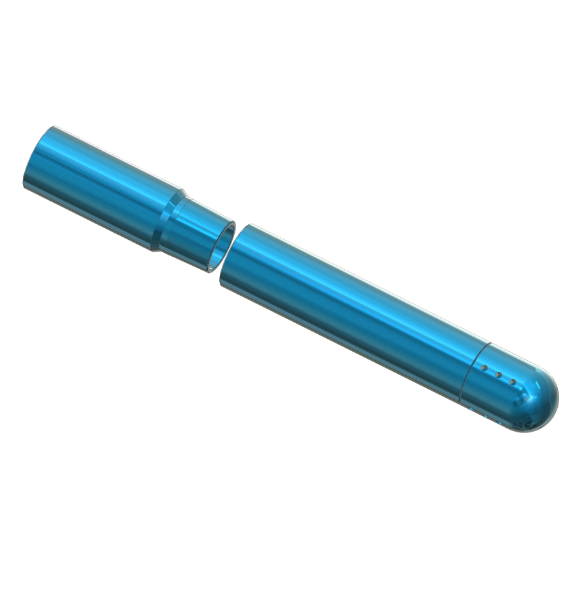

Aluminum-core Spring Float Collar/Shoe

To be the leading manufacturer of downhole tools

Home - Products - Float Collar/Shoe

introduction
Features
Specifications

Product introduction

铝制阀芯，可钻除；单阀、双阀两种结构

Product Features

The valve is made of drillable aluminum alloy.

Single or double valves are available.

Specifications

Size		Casing		Working Pressure
in	mm	lb/ft	mm	MPa
4-1/2	114.3	9.50-15.10	5.21-8.56	35
5	127	13.00-21.40	6.43-11.10	35
5-1/2	139.7	14.00-26.80	6.20-12.70	35
6-5/8	168.3	20.00-32.00	7.32-12.06	35
7	177.8	20.00-38.00	6.91-13.72	35
7-5/8	193.7	26.40-47.10	8.33-15.68	35
8-5/8	219.1	24.00-49.00	6.71-14.15	35
9-5/8	244.5	32.30-58.40	7.92-15.11	35
10-3/4	273.1	32.75-73.2	7.09-17.07	35
11-3/4	298.5	42.00-71.00	8.46-14.78	35
13-3/8	339.7	48.00-72.00	8.38-13.06	28
16	406.4	65.00-109.00	9.52-16.66	21
18-5/8	473.1	87.5	11.05	14
20	508	94.00-133.00	11.13-16.13	14

Product introduction

铝制阀芯，可钻除；单阀、双阀两种结构

Product Features

The valve is made of drillable aluminum alloy.

Single or double valves are available.

Specifications

Size		Casing		Working Pressure
in	mm	lb/ft	mm	MPa
4-1/2	114.3	9.50-15.10	5.21-8.56	35
5	127	13.00-21.40	6.43-11.10	35
5-1/2	139.7	14.00-26.80	6.20-12.70	35
6-5/8	168.3	20.00-32.00	7.32-12.06	35
7	177.8	20.00-38.00	6.91-13.72	35
7-5/8	193.7	26.40-47.10	8.33-15.68	35
8-5/8	219.1	24.00-49.00	6.71-14.15	35
9-5/8	244.5	32.30-58.40	7.92-15.11	35
10-3/4	273.1	32.75-73.2	7.09-17.07	35
11-3/4	298.5	42.00-71.00	8.46-14.78	35
13-3/8	339.7	48.00-72.00	8.38-13.06	28
16	406.4	65.00-109.00	9.52-16.66	21
18-5/8	473.1	87.5	11.05	14
20	508	94.00-133.00	11.13-16.13	14
