Cable Wall Cleaner-GRIFCO OIL TOOLS

Cable Wall Cleaner

To be the leading manufacturer of downhole tools

Home - Products - Cementing Accessories

introduction
Features
Specifications

Product introduction

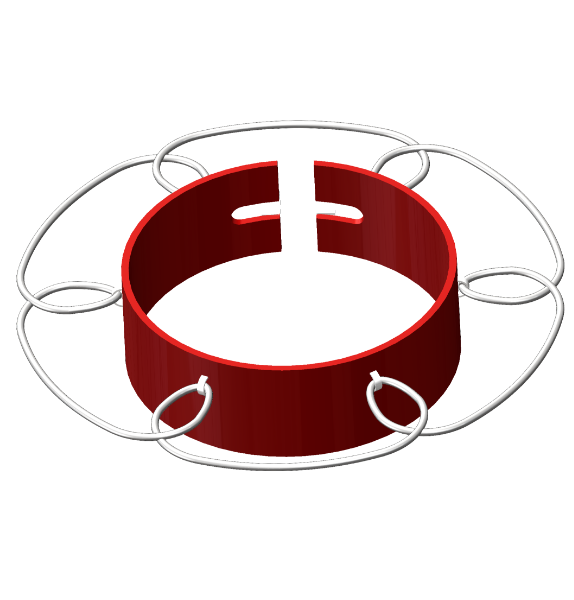

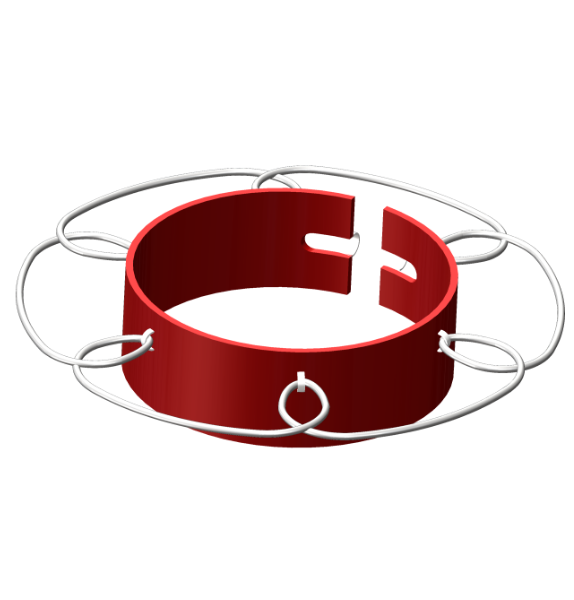

Wall Scratcher is composed of wire and a circle and it is installed on the outer part of the casing. It is used to scrape the mud attaching on the well to improve the cementing bonding.

Product Features

Stable structure and reliable performance.

Available for different wellbores

Specifications

Casing Size	ID	Hole Size	MAX OD
In	in	in	in
In	in	in	in
7	7	13.25	2.5
9-5/8	9-5/8	13.625	2.5
10-3/4	10-3/4	15	2.5
13-3/8	13-3/8	19.625	2.5
16	16	20	3
18-5/8	18-5/8	26.625	3
20	20	26.625	3

Product introduction

Wall Scratcher is composed of wire and a circle and it is installed on the outer part of the casing. It is used to scrape the mud attaching on the well to improve the cementing bonding.

Product Features

Stable structure and reliable performance.

Available for different wellbores

Specifications

Casing Size	ID	Hole Size	MAX OD
In	in	in	in
In	in	in	in
7	7	13.25	2.5
9-5/8	9-5/8	13.625	2.5
10-3/4	10-3/4	15	2.5
13-3/8	13-3/8	19.625	2.5
16	16	20	3
18-5/8	18-5/8	26.625	3
20	20	26.625	3
