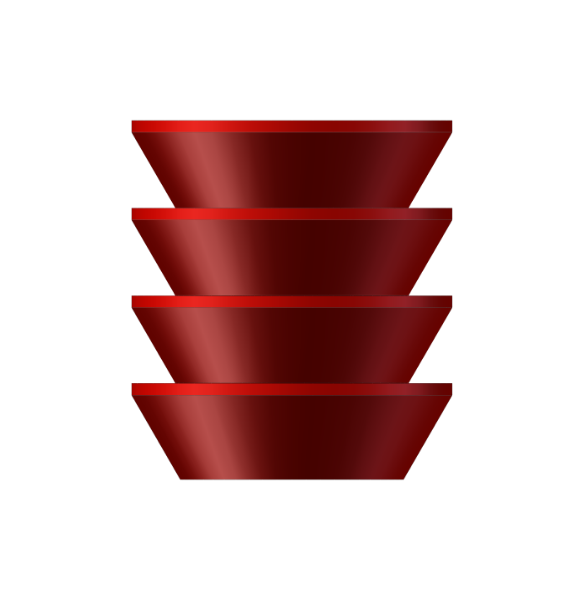

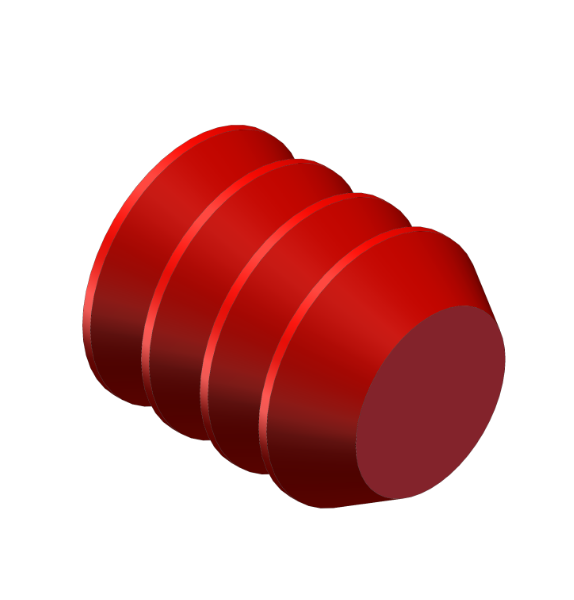

The Cementing Plug is used to isolate the fluid at above and below of the plug to avoid mixing slurry, usually used in cementing operations from casing down to the wellhead, there are Conventional and non-rotating plugs available types.
Size | Casin | Working Pressure | ||
| in | mm | lb/ft | mm | MPa |
| 4-1/2 | 114.3 | 9.50-11.60 | 5.21-6.35 | 42 |
| 5 | 127 | 11.50-21.40 | 5.59-11.10 | 42 |
| 5-1/2 | 139.7 | 14.00-26.80 | 6.20-12.70 | 42 |
| 7 | 177.8 | 17.00-38.00 | 5.87-13.72 | 42 |
| 7-5/8 | 193.7 | 24.00-42.80 | 7.62-14.27 | 42 |
| 9-5/8 | 244.5 | 36.00-53.50 | 8.94-13.84 | 42 |
| 10-3/4 | 273.1 | 40.50-65.70 | 8.89-15.11 | 42 |
| 13-3/8 | 339.7 | 48.00-72.00 | 8.38-13.06 | 42 |
| 20 | 508 | 94.00-133.00 | 11.13-16.13 | 14 |
The Cementing Plug is used to isolate the fluid at above and below of the plug to avoid mixing slurry, usually used in cementing operations from casing down to the wellhead, there are Conventional and non-rotating plugs available types.
Size | Casin | Working Pressure | ||
| in | mm | lb/ft | mm | MPa |
| 4-1/2 | 114.3 | 9.50-11.60 | 5.21-6.35 | 42 |
| 5 | 127 | 11.50-21.40 | 5.59-11.10 | 42 |
| 5-1/2 | 139.7 | 14.00-26.80 | 6.20-12.70 | 42 |
| 7 | 177.8 | 17.00-38.00 | 5.87-13.72 | 42 |
| 7-5/8 | 193.7 | 24.00-42.80 | 7.62-14.27 | 42 |
| 9-5/8 | 244.5 | 36.00-53.50 | 8.94-13.84 | 42 |
| 10-3/4 | 273.1 | 40.50-65.70 | 8.89-15.11 | 42 |
| 13-3/8 | 339.7 | 48.00-72.00 | 8.38-13.06 | 42 |
| 20 | 508 | 94.00-133.00 | 11.13-16.13 | 14 |
