Product introduction

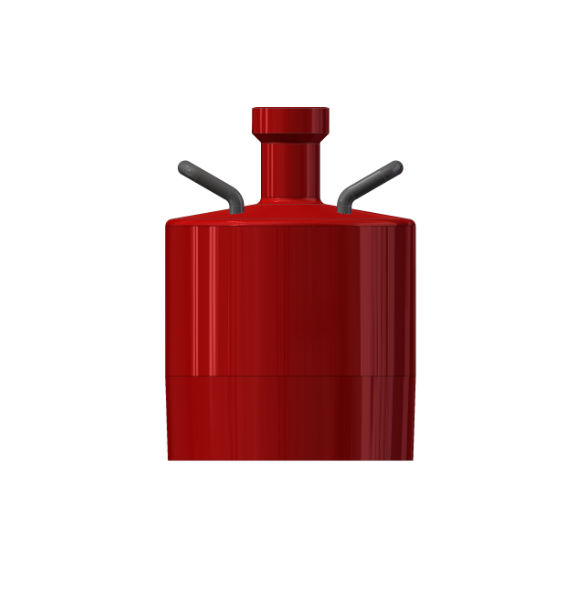

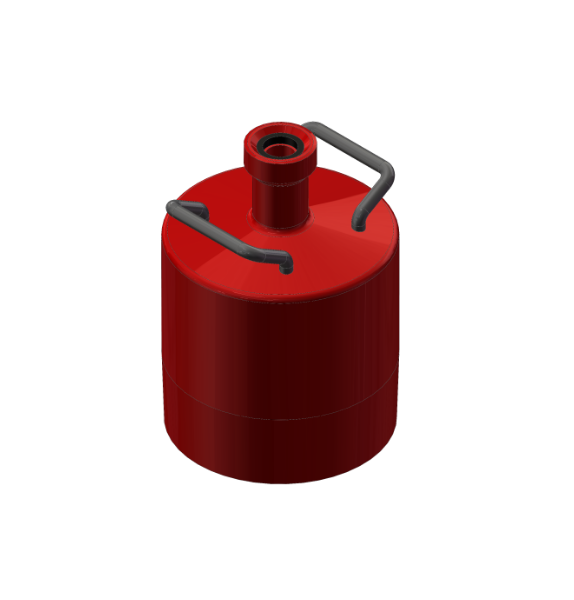

Cementing Swedge with simple structure and convenient operation is used to circulate mud in cementing process.

Product Features

Integrated structure design, high tensile strength and safe operation.

Apply to all connections and special requirements in API.

Special thread available according to demands.

Lifting ring design to handle conveniently.

Specifications

Size In (mm)	Working Pressure（Mpa）
Size In (mm)	Working Pressure（Mpa）
4（101）	50
4 1/2（114）
5（127）
5 1/2（140）
7（178）	35
7 5/8（194）
8 5/8（219）
9 5/8（244）
10 3/4（273）	21
11 3/4（298）
13 3/8（340）
20（508）	14
