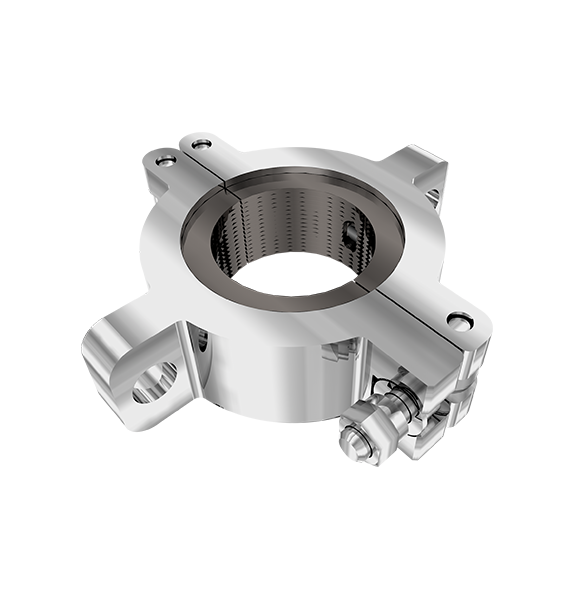

In the process of coiled tubing transportation, coiled tubing grapple sub is installed at the end of the coiled tubing and used together with the roller and the tube bank to fix the coiled tubing. Grapple sub is made up of two parts and can be adapted to different diameters of coiled tubing by changing the internal slips.
