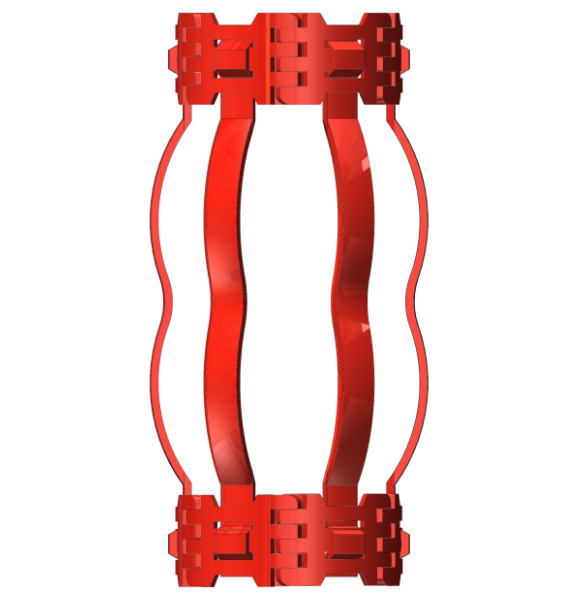

l The centralizer is stampped out from the spring steel, it has good elasticity and high restoring force, which is conducive to run in hole and has strong righting ability.
| Casing size | Hole size | Max OD | |
| in | in | mm | in |
| 4-1/2 | 5-7/8 | 177 | 6.969 |
| 4-1/2 | 6 | 199 | 7.835 |
| 4-1/2 | 8-1/2 | 255 | 10.078 |
| 5 | 6-1/4 | 187 | 7.48 |
| 5 | 6-1/2 | 187 | 7.48 |
| 5-1/2 | 8-1/2 | 256 | 10.079 |
| 6-5/8 | 8-1/4 | 245 | 9.646 |
| 6-5/8 | 8-1/2 | 245 | 9.646 |
| 6-5/8 | 8-3/4 | 255 | 10.039 |
| 7 | 8-1/2 | 253 | 9.921 |
| 7 | 9-1/2 | 279 | 10.984 |
| 7 | 9-7/8 | 297 | 11.693 |
| 7-5/8 | 9-1/2 | 278 | 10.945 |
| 7-5/8 | 9-7/8 | 278 | 10.945 |
| 9-5/8 | 12-1/4 | 374 | 14.764 |
| 10-3/4 | 12-1/4 | 370 | 14.567 |
| 10-3/4 | 13-3/8 | 380 | 14.961 |
| 10-3/4 | 13-5/8 | 392 | 15.433 |
| 10-3/4 | 14-3/4 | 416 | 16.378 |
| 10-3/4 | 16 | 428 | 16.85 |
| 13-3/8 | 16 | 443 | 17.441 |
| 13-3/8 | 17-1/2 | 471 | 18.504 |
| 16 | 20 | 551 | 21.654 |
| 16 | 22 | 613 | 24.132 |
| 20 | 26 | 714 | 28.11 |

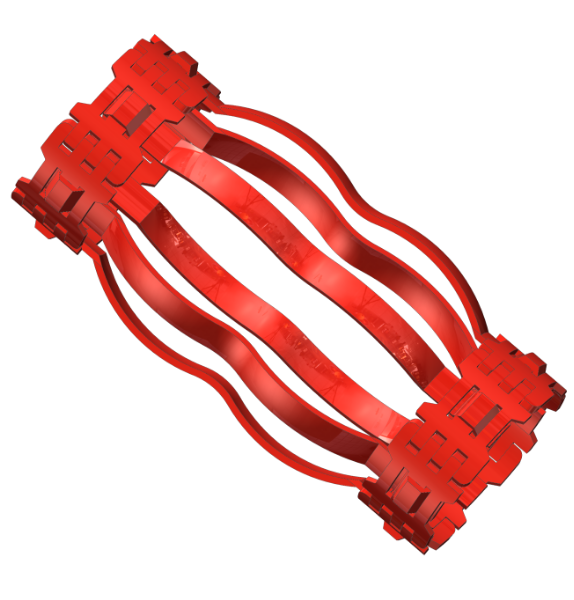

l The centralizer is stampped out from the spring steel, it has good elasticity and high restoring force, which is conducive to run in hole and has strong righting ability.
| Casing size | Hole size | Max OD | |
| in | in | mm | in |
| 4-1/2 | 5-7/8 | 177 | 6.969 |
| 4-1/2 | 6 | 199 | 7.835 |
| 4-1/2 | 8-1/2 | 255 | 10.078 |
| 5 | 6-1/4 | 187 | 7.48 |
| 5 | 6-1/2 | 187 | 7.48 |
| 5-1/2 | 8-1/2 | 256 | 10.079 |
| 6-5/8 | 8-1/4 | 245 | 9.646 |
| 6-5/8 | 8-1/2 | 245 | 9.646 |
| 6-5/8 | 8-3/4 | 255 | 10.039 |
| 7 | 8-1/2 | 253 | 9.921 |
| 7 | 9-1/2 | 279 | 10.984 |
| 7 | 9-7/8 | 297 | 11.693 |
| 7-5/8 | 9-1/2 | 278 | 10.945 |
| 7-5/8 | 9-7/8 | 278 | 10.945 |
| 9-5/8 | 12-1/4 | 374 | 14.764 |
| 10-3/4 | 12-1/4 | 370 | 14.567 |
| 10-3/4 | 13-3/8 | 380 | 14.961 |
| 10-3/4 | 13-5/8 | 392 | 15.433 |
| 10-3/4 | 14-3/4 | 416 | 16.378 |
| 10-3/4 | 16 | 428 | 16.85 |
| 13-3/8 | 16 | 443 | 17.441 |
| 13-3/8 | 17-1/2 | 471 | 18.504 |
| 16 | 20 | 551 | 21.654 |
| 16 | 22 | 613 | 24.132 |
| 20 | 26 | 714 | 28.11 |
