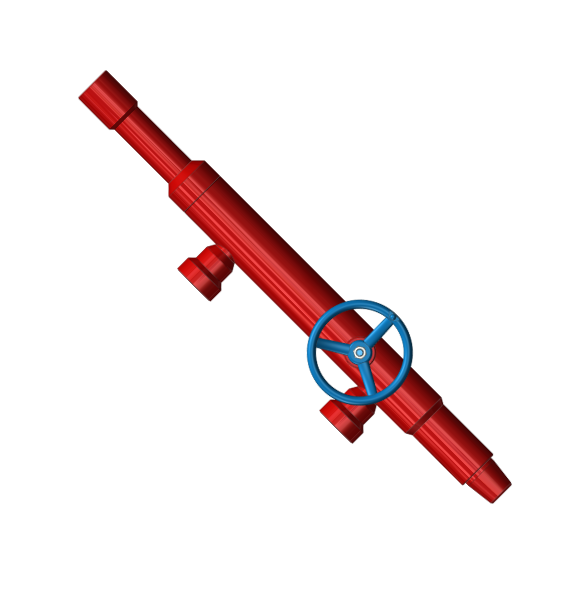

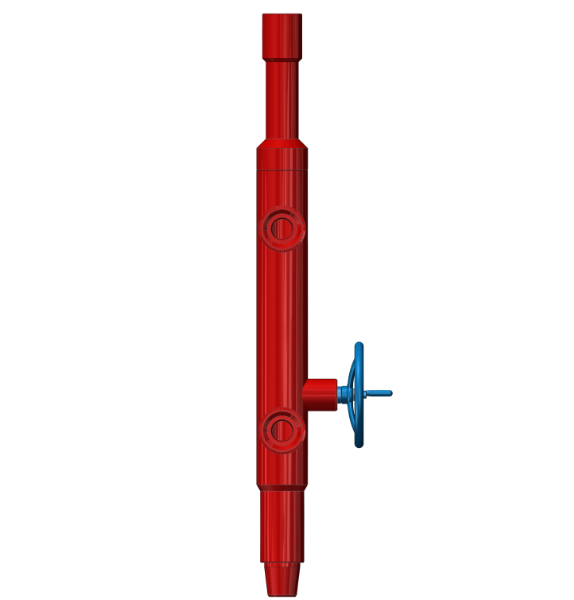

Drillpipe Cement Head
To be the leading manufacturer of downhole tools
Home - Products - Cement Head
  • introduction
  • Features
  • Specifications
Product introduction

Drillpipe Cement Head is used for cementing liner and releasing of plugs.

Product Features
Internal balance design to easily open the plunger.
Apply to all connections and special requirements in API.
With lifting sub for lifting cement head and pipe string using by lifting card.
Specifications

Size In（mm）

Working Pressure（Mpa）

ID In(mm)

Plug Space Length In(mm)

2 7/8（73）35，502.9（73.7）11.1(282)
3 1/2（89）3.6（91.5）11.8(299.8)
5（127）5.1（129.5）13.8(350.5)
5 1/2（140）5.6（142.2）15.0(381)
Product introduction

Drillpipe Cement Head is used for cementing liner and releasing of plugs.

Product Features
Internal balance design to easily open the plunger.
Apply to all connections and special requirements in API.
With lifting sub for lifting cement head and pipe string using by lifting card.
Specifications

Size In（mm）

Working Pressure（Mpa）

ID In(mm)

Plug Space Length In(mm)

2 7/8（73）35，502.9（73.7）11.1(282)
3 1/2（89）3.6（91.5）11.8(299.8)
5（127）5.1（129.5）13.8(350.5)
5 1/2（140）5.6（142.2）15.0(381)
