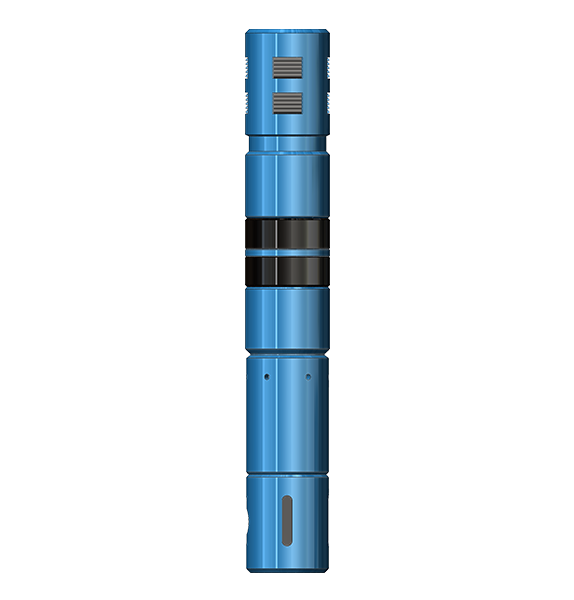

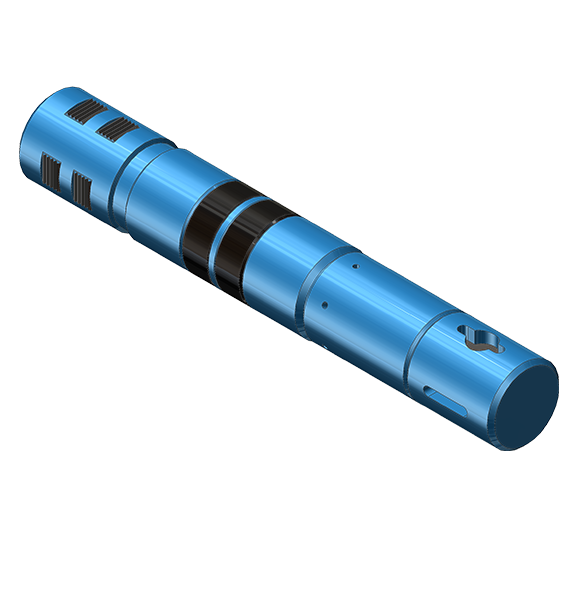

G-ESP packer is an electric submersible pump packer with hydraulic setting and hydraulic unsetting. The G-ESP packer mandrel remains stationary during the setting procedure, making this a packer perfect for situations where it is desirable to have production tubing spaced out and the wellhead flanged up.
Mandrel remains stationary during the setting procedure.
One Trip Hydraulic Set Operation.
Emergency unsetting by rotating.
Customized connections thread.
Customized pipeline connection.
Large slip area to minimize casing stress.
Specifications | ||||||||
Casing OD (in) | Casing Wt (lbs/ft) | Setting range | Tool OD (in) | Tool ID (in) | Max Pressure (psi) | Max Temperature (deg F) | Connection thread | |
| Min(in) | Max(in) | |||||||
| 7 | 26-29 | 6.136 | 6.276 | 6 | 2.437 | 3,500 | 250 | 2 7/8＂10Rd NU Box/Box |
G-ESP packer is an electric submersible pump packer with hydraulic setting and hydraulic unsetting. The G-ESP packer mandrel remains stationary during the setting procedure, making this a packer perfect for situations where it is desirable to have production tubing spaced out and the wellhead flanged up.
Mandrel remains stationary during the setting procedure.
One Trip Hydraulic Set Operation.
Emergency unsetting by rotating.
Customized connections thread.
Customized pipeline connection.
Large slip area to minimize casing stress.
Specifications | ||||||||
Casing OD (in) | Casing Wt (lbs/ft) | Setting range | Tool OD (in) | Tool ID (in) | Max Pressure (psi) | Max Temperature (deg F) | Connection thread | |
| Min(in) | Max(in) | |||||||
| 7 | 26-29 | 6.136 | 6.276 | 6 | 2.437 | 3,500 | 250 | 2 7/8＂10Rd NU Box/Box |
