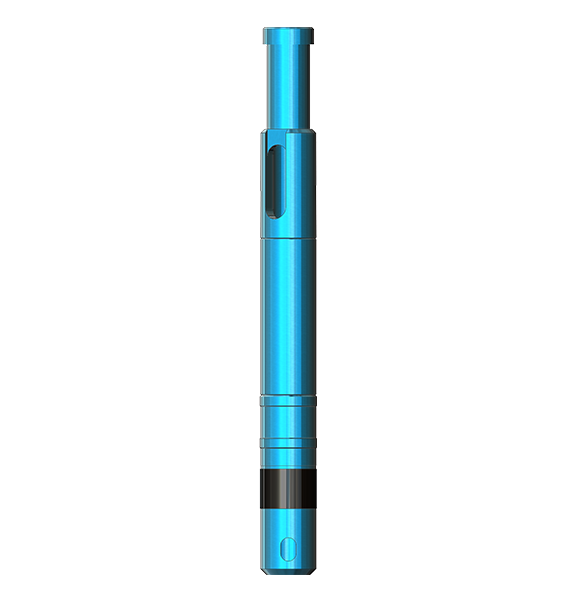

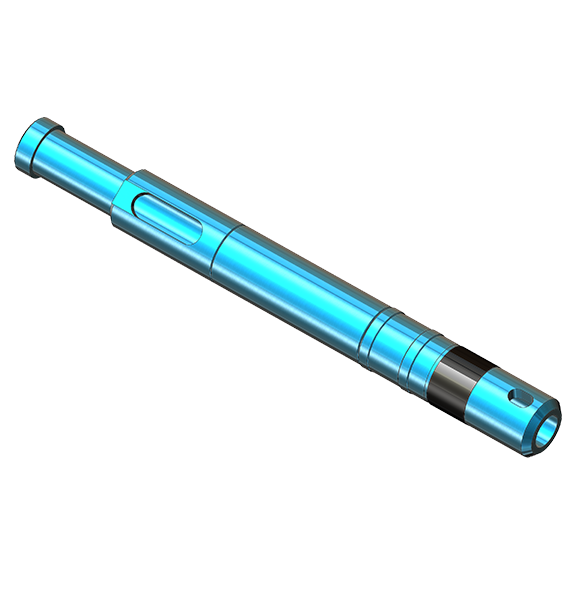

Equalizing Check Valves are sometimes called “Standing Valves” because they prevent fluid flow in one direction (downward) while allowing full fluid flow in the opposite direction(upward). The “FB-2” seats on the top No Go shoulder of a “F” type profile which prevents downward movement. It is not locked into the profile, and has a built-in method of allowing equalizing before pulling.
Delivery tool: C-1 well feed tool.
Recovery tool: SB feed well/recovery tool.
Specification | |||
Tubing Size (in) | Seal OD (in) | Max OD (in) | Pressure (psi) |
| 2.375 | 1.781 | 1.802 | 5000 |
| 1.812 | 1.865 | ||
| 1.875 | 1.905 | ||
| 2.875 | 2.25 | 2.302 | |
| 2.312 | 2.365 | ||
| 3.5 | 2.75 | 2.802 | |
| 2.813 | 2.865 | ||
Equalizing Check Valves are sometimes called “Standing Valves” because they prevent fluid flow in one direction (downward) while allowing full fluid flow in the opposite direction(upward). The “FB-2” seats on the top No Go shoulder of a “F” type profile which prevents downward movement. It is not locked into the profile, and has a built-in method of allowing equalizing before pulling.
Delivery tool: C-1 well feed tool.
Recovery tool: SB feed well/recovery tool.
Specification | |||
Tubing Size (in) | Seal OD (in) | Max OD (in) | Pressure (psi) |
| 2.375 | 1.781 | 1.802 | 5000 |
| 1.812 | 1.865 | ||
| 1.875 | 1.905 | ||
| 2.875 | 2.25 | 2.302 | |
| 2.312 | 2.365 | ||
| 3.5 | 2.75 | 2.802 | |
| 2.813 | 2.865 | ||
