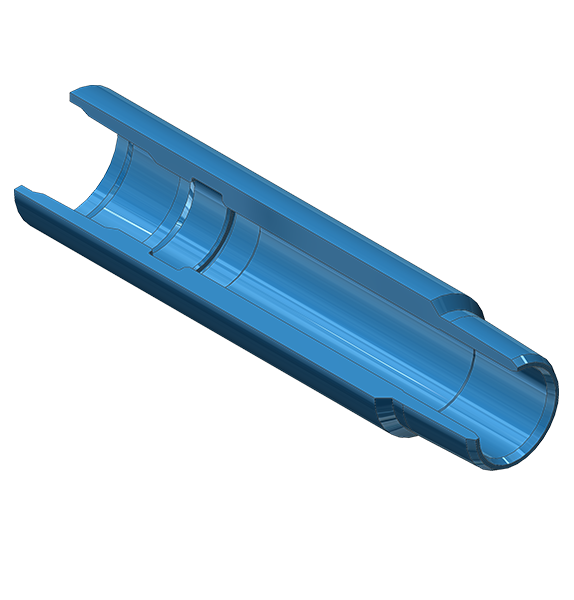

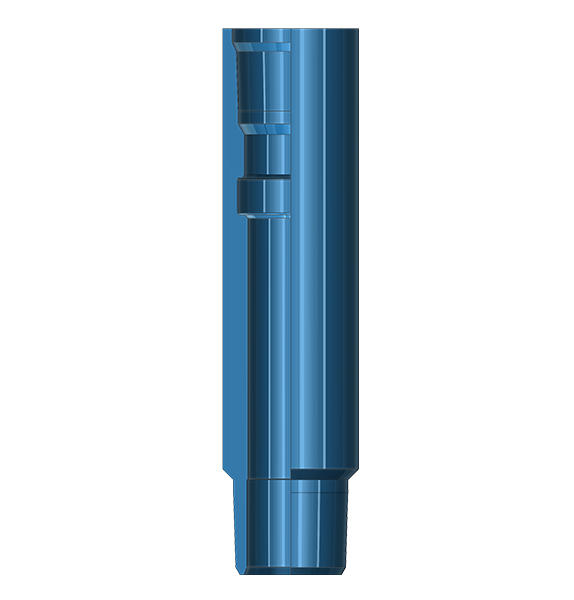

The Model “F” Profile Nipple is a TOP No Go Nipple that provides for the location of various wireline flow control devices in the production string.
Optional
Longer sealed bore
Same strength as standard tubing
Various connections available
Specifications | ||||
Size (in) | OD (in) | Seal Bore (in) | Pressure (psi) | Thread |
| 1.9 | 2.5 | 1.5 | 10,000 | 1.90" EUE |
| 2 .375 | 3.063 | 1.781 | 2 3/8" EUE | |
| 1.812 | ||||
| 1.875 | ||||
| 2 .875 | 3.668 | 2.25 | 2 7/8" EUE | |
| 2.312 | ||||
| 3.5 | 4.5 | 2.75 | 3 1/2" EUE | |
| 2.812 | ||||
