Product introduction

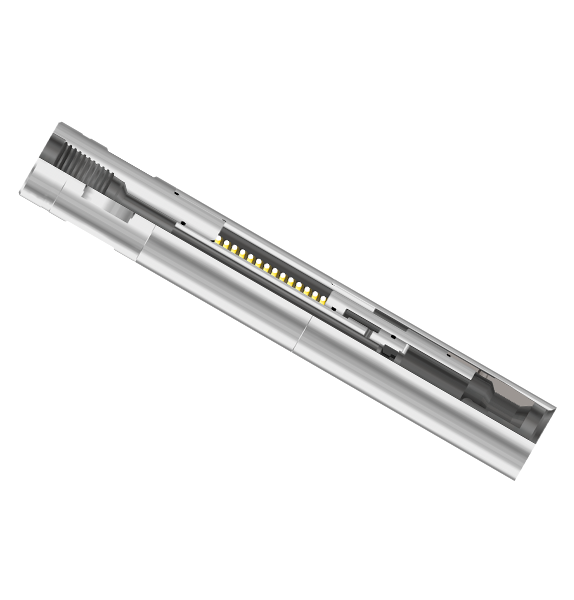

Flow activated releasable overshot can catch cylindrical fish falling down the well, and the inclined plane slips inside the releasable overshot ensure enough lifting force. When the fish needs to be released, it is necessary to press the tool first to use the pressure difference for pushing the piston to move up to release the fish.  Different sizes of fish can be salvaged by changing different sizes of fish slips.

Product Features

l Flow activated release.

Different sizes of fish can be salvaged by changing slips

Specifications

OD

(mm)

ID

(mm)

Connection

Length

(mm)

Release Pressure

(MPa)
50.89.91"AMMT4293.4
60.39.91-1/2"AMMT505.53.4
739.92-3/8"PAC571.53.4
79.419.82-3/8"PAC584.23.4
9217.782-3/8"PAC817.93.4
Product introduction

Flow activated releasable overshot can catch cylindrical fish falling down the well, and the inclined plane slips inside the releasable overshot ensure enough lifting force. When the fish needs to be released, it is necessary to press the tool first to use the pressure difference for pushing the piston to move up to release the fish.  Different sizes of fish can be salvaged by changing different sizes of fish slips.

Product Features

l Flow activated release.

Different sizes of fish can be salvaged by changing slips

Specifications

OD

(mm)

ID

(mm)

Connection

Length

(mm)

Release Pressure

(MPa)
50.89.91"AMMT4293.4
60.39.91-1/2"AMMT505.53.4
739.92-3/8"PAC571.53.4
79.419.82-3/8"PAC584.23.4
9217.782-3/8"PAC817.93.4
