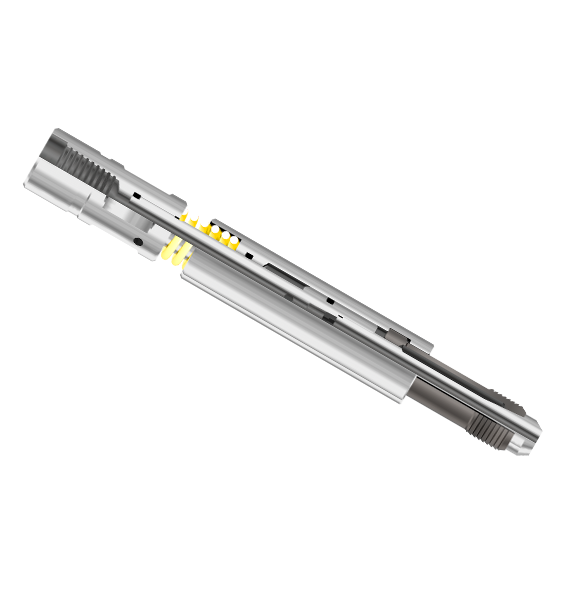

Flow activated releasable spear is an internal fishing tool used for fishing regular inner material. Different fishing slips need to be replaced for fish with different inner diameters. Release the fish only need to press down the fishing tool, through the pressure difference control piston moving up to release the fish.
l Flow activated release.
Different sizes of fish can be salvaged by changing slips
OD (mm) | ID (mm) | Length (mm) | Connection | Tensile Strength (T) |
| 43 | 9.4 | 464.8 | 1"AMMT | 12 |
| 57 | 9.4 | 464.8 | 1-1/2"AMMT | 14.5 |
| 73 | 10 | 505.5 | 2-3/8"PAC | 37 |
Flow activated releasable spear is an internal fishing tool used for fishing regular inner material. Different fishing slips need to be replaced for fish with different inner diameters. Release the fish only need to press down the fishing tool, through the pressure difference control piston moving up to release the fish.
l Flow activated release.
Different sizes of fish can be salvaged by changing slips
OD (mm) | ID (mm) | Length (mm) | Connection | Tensile Strength (T) |
| 43 | 9.4 | 464.8 | 1"AMMT | 12 |
| 57 | 9.4 | 464.8 | 1-1/2"AMMT | 14.5 |
| 73 | 10 | 505.5 | 2-3/8"PAC | 37 |
