GACP External Tube Packer
To be the leading manufacturer of downhole tools
  • introduction
  • Features
  • Specifications
Product introduction

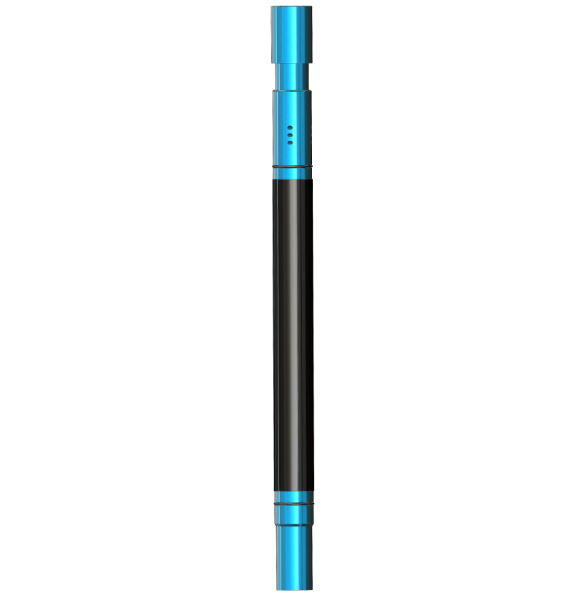

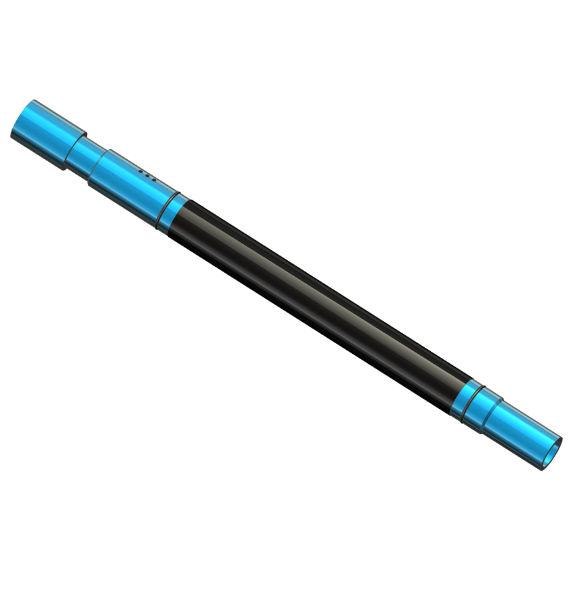

GACP External Tube Packer is standard packer which regards longer sealers, cement slurry or other liquids as expansion media. Double four-chamber valve system doubles flow area and reduces erosion to seats, cylinders and expansion channels. The stiffener can improve the strength of the tail sleeve. The stiffeners are in contact with the wellbore to provide flexible expansion space for the unreinforced central section, and to seal irregular open holes more effectively.

Product Features
The top expansion system accurately measures annulus pressure to accurate control of the valve system.
Redundant valves can be used in the event of damage in the hole.
Pressure balance seal ensures accurate opening of shear valve.
Wear-resistant, ozone-protected nitrile rubber reduces wear and increases cylinder life.
Progressive expansion technology enables gradual filling from bottom to top to preventing pressure blocking during expansion.
Specifications
Product specifications
Sleeve size本体外径
inmm
3-1/24.75120.65
45.25133.35
4-1/25.625142.88
56152.4
5-1/27177.8
6-5/87.625193.68
78203.2
7-5/89228.6
8-5/810.13257.3
9-5/811.25285.75
9-7/811.25285.75
10-3/412.75323.85
11-7/813.75349.25
13-3/815.75400.05
Product introduction

GACP External Tube Packer is standard packer which regards longer sealers, cement slurry or other liquids as expansion media. Double four-chamber valve system doubles flow area and reduces erosion to seats, cylinders and expansion channels. The stiffener can improve the strength of the tail sleeve. The stiffeners are in contact with the wellbore to provide flexible expansion space for the unreinforced central section, and to seal irregular open holes more effectively.

Product Features
The top expansion system accurately measures annulus pressure to accurate control of the valve system.
Redundant valves can be used in the event of damage in the hole.
Pressure balance seal ensures accurate opening of shear valve.
Wear-resistant, ozone-protected nitrile rubber reduces wear and increases cylinder life.
Progressive expansion technology enables gradual filling from bottom to top to preventing pressure blocking during expansion.
Specifications
Product specifications
Sleeve size本体外径
inmm
3-1/24.75120.65
45.25133.35
4-1/25.625142.88
56152.4
5-1/27177.8
6-5/87.625193.68
78203.2
7-5/89228.6
8-5/810.13257.3
9-5/811.25285.75
9-7/811.25285.75
10-3/412.75323.85
11-7/813.75349.25
13-3/815.75400.05
