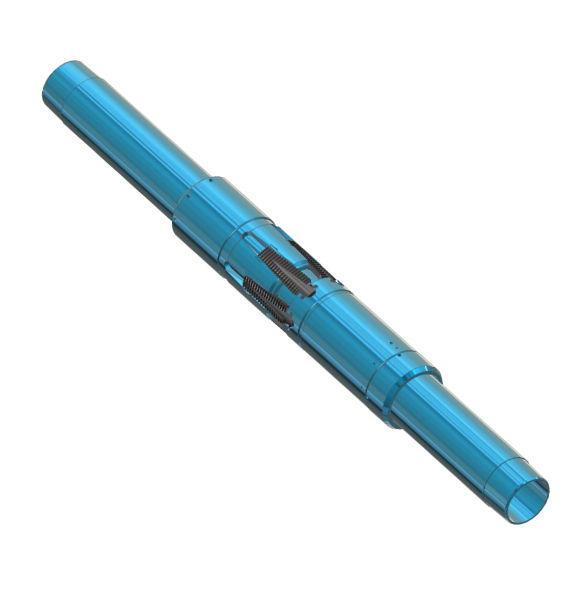

The GH series Liner Hanger series is capable of hanging very heavy liners. There is no welding in the body. Compared to the cone liner hanger, it dramatically increased its hanging capacity. Loads transfer circumferentially into the slip seat along a circle, rather than radially inward to the mandrel as the liner weight is hung. High load stresses on the mandrel beneath the slips are avoided, preventing collapse of the hanger body under heavy loading.
Liner Hanger Size (Casing x Liner ) in | Casing Weight | Maximum OD | ||
lb/ft | kg/m | in | mm | |
| 5"x 3-1/2" | 11.5-15 | 17.15-22.37 | 4.24 | 107.7 |
| 18 | 26.84 | 4.12 | 104.65 | |
| 5-1/2"x 3-1/2" | 14-23 | 20.87-34.30 | 4.5 | 114.3 |
| 26-29.7 | 38.77-44.29 | 4.24 | 107.7 | |
| 32.3 | 48.16 | 4.12 | 104.64 | |
| 5-1/2";x 4"; | 14-17 | 20.87-25.35 | 4.732 | 120.19 |
| 20 | 29.82 | 4.618 | 117.29 | |
| 5-3/4"x4" | 18 | 26.84 | 4.94 | 125.48 |
| 7"x 4-1/2" | 20-35 | 29.83-52.20 | 5.819 | 147.8 |
| 35-41 | 52.20-61.14 | 5.625 | 142.88 | |
| 35-42.7 | 52.20-63.68 | 5.56 | 141.22 | |
| 7"x5" | 17-26 | 25.35-38.77 | 6.106 | 155.09 |
| 26-32 | 38.77-47.72 | 5.924 | 150.46 | |
| 32-35 | 47.72-52.20 | 5.82 | 147.83 | |
| 35-38 | 52.20-56.67 | 5.775 | 146.68 | |
| 38-41 | 56.67-61.14 | 5.675 | 144.15 | |
| 7-5/8"x 5" | 24-33.7 | 35.79-50.25 | 6.595 | 167.51 |
| 29.7-39 | 44.29-58.16 | 6.455 | 163.95 | |
| 42.8-45.3 | 63.83-67.55 | 6.275 | 159.38 | |
| 47.1 | 70.24 | 6.215 | 157.86 | |
| 7-5/8"x 5-1/2" | 24-33.7 | 35.79-50.25 | 6.595 | 167.51 |
| 29.7-39 | 44.29-58.16 | 6.455 | 163.95 | |
| 42.8-45.3 | 63.83-67.55 | 6.275 | 159.38 | |
| 47.1 | 70.24 | 6.215 | 157.86 | |
| 9-5/8"x 5" | 40-53.5 | 59.65-79.78 | 8.334 | 211.68 |
| 9-5/8"x 5-1/2" | 40-53.5 | 59.65-79.78 | 8.334 | 211.68 |
| 9-5/8"x 7" | 40-53.5 | 59.65-79.78 | 8.334 | 211.68 |
| 43.5-58.4 | 64.87-87.09 | 8.234 | 209.14 | |
| 9-5/8"x7-5/" | 32.3-40 | 48.17-59.65 | 8.634 | 219.3 |
| 43.5-47 | 64.87-70.09 | 8.48 | 215.39 | |
| 47-53.5 | 70.09-79.78 | 8.359 | 212.32 | |
| 10-3/4"x 7" | 32.8-85.3 | 48.91-127.21 | 8.955 | 227.45 |
| 10-3/4"x7-5/8" | 32.8-55.5 | 48.91-82.77 | 9.46 | 240.28 |
| 51-73.2 | 76.06-109.16 | 9.152 | 232.46 | |
| 11-3/4"x 9-5/8" | 42-54 | 62.63-80.53 | 10.679 | 271.24 |
| 54-60 | 80.53-89.48 | 10.571 | 268.5 | |
| 60-66.7 | 89.48-99.47 | 10.475 | 266.07 | |
| 71 | 105.88 | 10.41 | 264.41 | |
| 13-3/8"x 9-5/8" | 54.5-72 | 81.28-107.37 | 12.14 | 308.36 |
| 48-98 | 71.58-146.15 | 11.718 | 297.63 | |
| 13-3/8"x 9-7/8" | 48-80.7 | 71.58-120.35 | 12.05 | 306.07 |
| 13-3/8"x10-3/4" | 48 -72 | 71.58-107.37 | 12.146 | 308.51 |
| 16"x13-3/8" | 75-84 | 111.85-125.27 | 14.7 | 373.38 |
| 84-109 | 125.27-162.55 | 14.375 | 365.13 | |
| 18-5/8"x 16" | 87.5 | 130.49 | 17.4 | 441.96 |
| 20"x 13-3/8" | 94-169 | 140.18-252.03 | 18.053 | 458.55 |
| 20"x 16" | 131-169 | 195.36-252.03 | 17.5 | 444.5 |
| 163-187 | 243.08-278.87 | 17.4 | 441.96 | |
