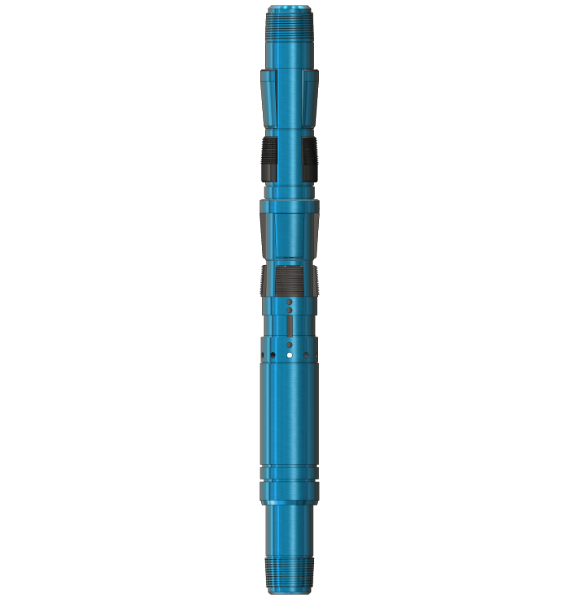

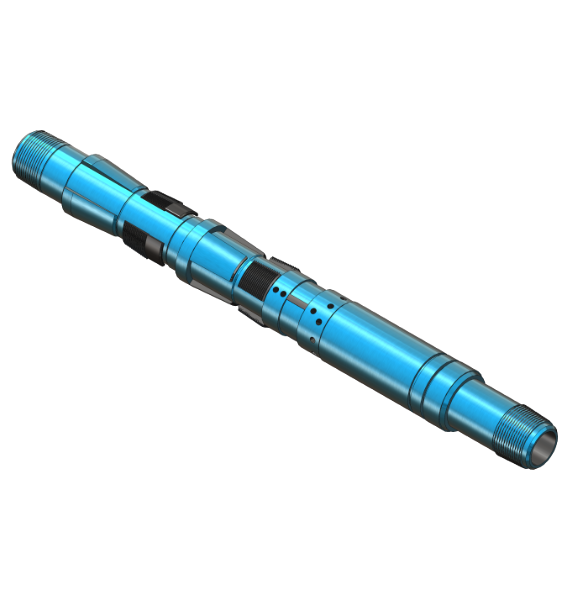

GHGC Hydraulic Set Liner Hanger is set hydraulically by applied pressure through the run-in string, and is designed to support medium to heavy liner loads. The hanger is widely used in deep well and large deviated wells, where actuation of mechanical set hangers may not be preferred. A setting ball is dropped and/or circulated to a ball seat in the landing collar or running string. Differential pressure acts on the hydraulic cylinder, moving slips up the cones to the set position.
The high-strength hydraulic cylinder is designed to provide high burst and collapse resistance.
Liner Hanger Siz | Casing Weight | Maximum OD | ||
| ( Casing x Liner ) | ||||
in. | lb/f | kg/ | in. | mm |
| 5-1/2"x 3-1/2" | 13-15.5 | 19.38-23.11 | 4.625 | 117.48 |
| 17 | 25.35 | 4.5 | 114.3 | |
| 20-23 | 29.82-34.30 | 4.375 | 111.12 | |
| 5-3/4"x 4" | 17-19.5 | 25.35-29.08 | 4.9 | 124.46 |
| 6-5/8"x 4-1/2" | 20-24 | 29.83-35.79 | 5.75 | 146.05 |
| 28-32 | 41.75-47.72 | 5.375 | 136.53 | |
| 7"x 4-1/2" | 23-26 | 34.30-38.77 | 6.05 | 153.67 |
| 26-32 | 38.77-47.72 | 5.875 | 149.22 | |
| 35 | 52.19 | 5.75 | 146.05 | |
| 38-41 | 56.67-61.14 | 5.625 | 142.87 | |
| 7"x5" | 17 | 23.35 | 6.25 | 158.75 |
| 23-26 | 34.30-38.77 | 6 | 152.4 | |
| 26-32 | 38.77-47.72 | 5.875 | 149.22 | |
| 35 | 52.19 | 5.8 | 147.32 | |
| 38 | 56.67 | 5.625 | 142.87 | |
| 7-5/8"x 5" | 20-26.4 | 29.82-39.37 | 6.688 | 169.87 |
| 29.7-33.7 | 44.29-50.25 | 6.5 | 165.1 | |
| 39 | 58.16 | 6.375 | 161.92 | |
| 7"x 5-1/2" | 23 | 34.3 | 6.156 | 156.36 |
| 23-26 | 34.30-38.77 | 6.125 | 155.57 | |
| 26-29 | 38.77-43.25 | 6.03 | 153.16 | |
| 7-5/8"x 5-1/2" | 20-26.4 | 29.82-39.37 | 6.688 | 169.87 |
| 29.7-33.7 | 44.29-50.25 | 6.5 | 165.1 | |
| 39 | 58.16 | 6.375 | 161.92 | |
| 42.8-45.3 | 63.83-67.55 | 6.25 | 158.75 | |
| 8-5/8"x 5-1/2" | 24-28 | 35.79-41.75 | 7.75 | 196.85 |
| 32-36 | 47.72-53.68 | 7.562 | 192.07 | |
| 8-5/8"x 6-5/8" | 40-44 | 59.65-65.62 | 7.375 | 187.32 |
| 9-5/8"x 7" | 32-36 | 47.72-53.68 | 8.5 | 215.9 |
| 40-47 | 59.65-70.09 | 8.375 | 212.72 | |
| 47-53.5 | 70.09-79.78 | 8.313 | 211.15 | |
| 53.5-61.1 | 79.78-91.12 | 8.125 | 206.37 | |
| 9-5/8"x 7-5/8" | 43.5-47 | 64.87-70.09 | 8.437 | 214.29 |
| 53.5 | 79.78 | 8.313 | 211.15 | |
| 10-3/4"x 7-5/8" | 45.5-55.5 | 67.85-82.77 | 9.5 | 241.3 |
| 60.7 | 90.52 | 9.375 | 238.12 | |
| 65.7-71.1 | 97.98-106.03 | 9.188 | 233.37 | |
| 11-3/4"x7-5/8" | 60-66.7 | 89.48-99.47 | 10.375 | 263.52 |
| 10-3/4"x 8-5/8" | 60.7 | 90.52 | 9.4 | 238.76 |
| 11-3/4"x 9-5/8" | 60-66.7 | 89.48-99.47 | 10.438 | 265.12 |
| 66.7-71 | 99.47-105.88 | 10.375 | 263.52 | |
| 11-7/8"x 9-5/8" | 71.8 | 107.08 | 10.438 | 265.12 |
| 13-3/8"x 9-5/8" | 61-68 | 90.97-101.41 | 11.875 | 301.62 |
| 72-86 | 107.37-128.25 | 11.75 | 298.45 | |
| 13-3/8"x10-3/4" | 61-68 | 90.97-101.41 | 12.125 | 307.98 |
| 72-77 | 107.37-114.83 | 12 | 304.8 | |
| 16"x 11-3/4" | 84-97 | 125.27-144.66 | 14.375 | 365.12 |
| 16"x 13-3/8" | 95-97 | 141.67-144.66 | 14.625 | 371.48 |
| 20"x16" | 131 | 195.36 | 18 | 457.2 |
GHGC Hydraulic Set Liner Hanger is set hydraulically by applied pressure through the run-in string, and is designed to support medium to heavy liner loads. The hanger is widely used in deep well and large deviated wells, where actuation of mechanical set hangers may not be preferred. A setting ball is dropped and/or circulated to a ball seat in the landing collar or running string. Differential pressure acts on the hydraulic cylinder, moving slips up the cones to the set position.
The high-strength hydraulic cylinder is designed to provide high burst and collapse resistance.
Liner Hanger Siz | Casing Weight | Maximum OD | ||
| ( Casing x Liner ) | ||||
in. | lb/f | kg/ | in. | mm |
| 5-1/2"x 3-1/2" | 13-15.5 | 19.38-23.11 | 4.625 | 117.48 |
| 17 | 25.35 | 4.5 | 114.3 | |
| 20-23 | 29.82-34.30 | 4.375 | 111.12 | |
| 5-3/4"x 4" | 17-19.5 | 25.35-29.08 | 4.9 | 124.46 |
| 6-5/8"x 4-1/2" | 20-24 | 29.83-35.79 | 5.75 | 146.05 |
| 28-32 | 41.75-47.72 | 5.375 | 136.53 | |
| 7"x 4-1/2" | 23-26 | 34.30-38.77 | 6.05 | 153.67 |
| 26-32 | 38.77-47.72 | 5.875 | 149.22 | |
| 35 | 52.19 | 5.75 | 146.05 | |
| 38-41 | 56.67-61.14 | 5.625 | 142.87 | |
| 7"x5" | 17 | 23.35 | 6.25 | 158.75 |
| 23-26 | 34.30-38.77 | 6 | 152.4 | |
| 26-32 | 38.77-47.72 | 5.875 | 149.22 | |
| 35 | 52.19 | 5.8 | 147.32 | |
| 38 | 56.67 | 5.625 | 142.87 | |
| 7-5/8"x 5" | 20-26.4 | 29.82-39.37 | 6.688 | 169.87 |
| 29.7-33.7 | 44.29-50.25 | 6.5 | 165.1 | |
| 39 | 58.16 | 6.375 | 161.92 | |
| 7"x 5-1/2" | 23 | 34.3 | 6.156 | 156.36 |
| 23-26 | 34.30-38.77 | 6.125 | 155.57 | |
| 26-29 | 38.77-43.25 | 6.03 | 153.16 | |
| 7-5/8"x 5-1/2" | 20-26.4 | 29.82-39.37 | 6.688 | 169.87 |
| 29.7-33.7 | 44.29-50.25 | 6.5 | 165.1 | |
| 39 | 58.16 | 6.375 | 161.92 | |
| 42.8-45.3 | 63.83-67.55 | 6.25 | 158.75 | |
| 8-5/8"x 5-1/2" | 24-28 | 35.79-41.75 | 7.75 | 196.85 |
| 32-36 | 47.72-53.68 | 7.562 | 192.07 | |
| 8-5/8"x 6-5/8" | 40-44 | 59.65-65.62 | 7.375 | 187.32 |
| 9-5/8"x 7" | 32-36 | 47.72-53.68 | 8.5 | 215.9 |
| 40-47 | 59.65-70.09 | 8.375 | 212.72 | |
| 47-53.5 | 70.09-79.78 | 8.313 | 211.15 | |
| 53.5-61.1 | 79.78-91.12 | 8.125 | 206.37 | |
| 9-5/8"x 7-5/8" | 43.5-47 | 64.87-70.09 | 8.437 | 214.29 |
| 53.5 | 79.78 | 8.313 | 211.15 | |
| 10-3/4"x 7-5/8" | 45.5-55.5 | 67.85-82.77 | 9.5 | 241.3 |
| 60.7 | 90.52 | 9.375 | 238.12 | |
| 65.7-71.1 | 97.98-106.03 | 9.188 | 233.37 | |
| 11-3/4"x7-5/8" | 60-66.7 | 89.48-99.47 | 10.375 | 263.52 |
| 10-3/4"x 8-5/8" | 60.7 | 90.52 | 9.4 | 238.76 |
| 11-3/4"x 9-5/8" | 60-66.7 | 89.48-99.47 | 10.438 | 265.12 |
| 66.7-71 | 99.47-105.88 | 10.375 | 263.52 | |
| 11-7/8"x 9-5/8" | 71.8 | 107.08 | 10.438 | 265.12 |
| 13-3/8"x 9-5/8" | 61-68 | 90.97-101.41 | 11.875 | 301.62 |
| 72-86 | 107.37-128.25 | 11.75 | 298.45 | |
| 13-3/8"x10-3/4" | 61-68 | 90.97-101.41 | 12.125 | 307.98 |
| 72-77 | 107.37-114.83 | 12 | 304.8 | |
| 16"x 11-3/4" | 84-97 | 125.27-144.66 | 14.375 | 365.12 |
| 16"x 13-3/8" | 95-97 | 141.67-144.66 | 14.625 | 371.48 |
| 20"x16" | 131 | 195.36 | 18 | 457.2 |
