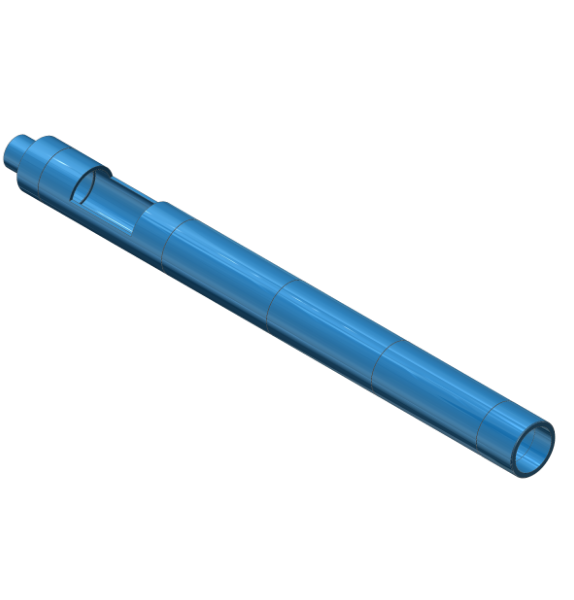

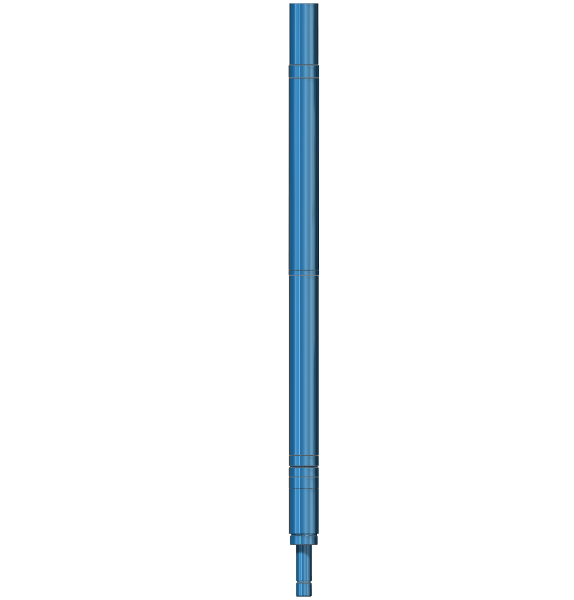

The hydraulic setting tools are used to run and set packers，bridge plugs and cement retainers on a work string, production tubing or coiled tubing. The setting tool translate hydraulic pressure applied to the tubing to a force transmitted through the adapter kit to the slips and pack off the sealing element of these tools. It allows setting in high-angle or deviated wells where it is often difficult to use wireline equipment.
Translate pressure to the setting bridge plug, cement retainer or packer by dropping ball.
Balanced upper and lower piston.
Bridge plugs, cement retainers or packers are not need to be set in advance, and the setting is stable, easy to maintain, and long lasting.
Specifications | ||||||
Type | Tool OD | Piston area | Setting force MAX (lbs) | Tension MAX (lbs) | Length | Top thread |
| 1 11/16 | 1.72 | 2.238 | 15,000 | 25,000 | 66.88 | 1"AMMT |
| #10 | 3.125 | 6.68 | 50,000 | 60,000 | 58.47 | 2 3/8"-8RD EU |
| #20 | 3 7/8 | 11.85 | 60,000 | 78,000 | 59.5 | 2 7/8"-8RD EU |
| GO | 3 7/8 | 11.85 | 60,000 | 78,000 | 73.3 | 2 7/8"-8RD EU |
| #20/GO | 3 7/8 | 15 | 60,000 | 70,000 | 49.07 | 2 7/8"-8RD EU |
The hydraulic setting tools are used to run and set packers，bridge plugs and cement retainers on a work string, production tubing or coiled tubing. The setting tool translate hydraulic pressure applied to the tubing to a force transmitted through the adapter kit to the slips and pack off the sealing element of these tools. It allows setting in high-angle or deviated wells where it is often difficult to use wireline equipment.
Translate pressure to the setting bridge plug, cement retainer or packer by dropping ball.
Balanced upper and lower piston.
Bridge plugs, cement retainers or packers are not need to be set in advance, and the setting is stable, easy to maintain, and long lasting.
Specifications | ||||||
Type | Tool OD | Piston area | Setting force MAX (lbs) | Tension MAX (lbs) | Length | Top thread |
| 1 11/16 | 1.72 | 2.238 | 15,000 | 25,000 | 66.88 | 1"AMMT |
| #10 | 3.125 | 6.68 | 50,000 | 60,000 | 58.47 | 2 3/8"-8RD EU |
| #20 | 3 7/8 | 11.85 | 60,000 | 78,000 | 59.5 | 2 7/8"-8RD EU |
| GO | 3 7/8 | 11.85 | 60,000 | 78,000 | 73.3 | 2 7/8"-8RD EU |
| #20/GO | 3 7/8 | 15 | 60,000 | 70,000 | 49.07 | 2 7/8"-8RD EU |
