Grub Screw Connector
To be the leading manufacturer of downhole tools
  • introduction
  • Features
  • Specifications
Product introduction

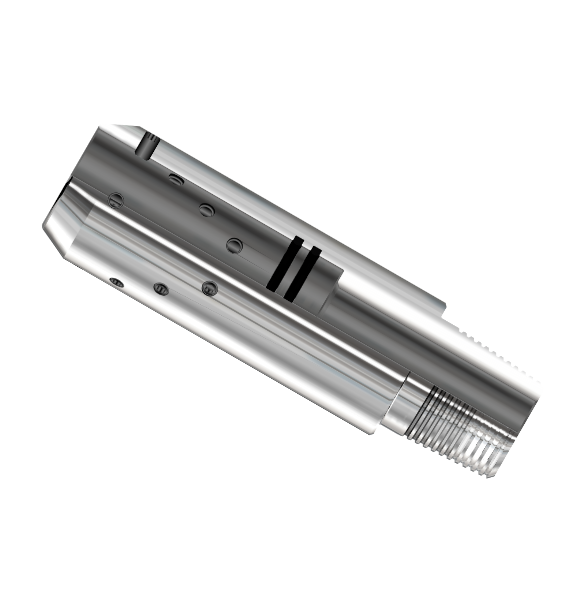

The Grub Screw Connector is attached to the coiled tubing end by set screws that engage performed dimples, which are formed using a dimpling hammer. The 16 set screws connection creates a solid bond between the coil tubing and connection. This connector has good tensile and torsion strength and is available for heavy duty operation, like milling job, etc

Product Features
Screws with knurled head design
High torsional design
Specifications
CT Size
OD
IDConnectionLengthPressure Rating
MPa
Tensile Strength
T
1-1/2"5425.41-1/2"AMMT2543516
1-3/4"60.325.41-1/2"AMMT2543529
2"73352-3/8"PAC279.43541
2-3/8"79.4352-3/8"PAC279.43545
2-7/8"9544NC26355.63568
Product introduction

The Grub Screw Connector is attached to the coiled tubing end by set screws that engage performed dimples, which are formed using a dimpling hammer. The 16 set screws connection creates a solid bond between the coil tubing and connection. This connector has good tensile and torsion strength and is available for heavy duty operation, like milling job, etc

Product Features
Screws with knurled head design
High torsional design
Specifications
CT Size
OD
IDConnectionLengthPressure Rating
MPa
Tensile Strength
T
1-1/2"5425.41-1/2"AMMT2543516
1-3/4"60.325.41-1/2"AMMT2543529
2"73352-3/8"PAC279.43541
2-3/8"79.4352-3/8"PAC279.43545
2-7/8"9544NC26355.63568
