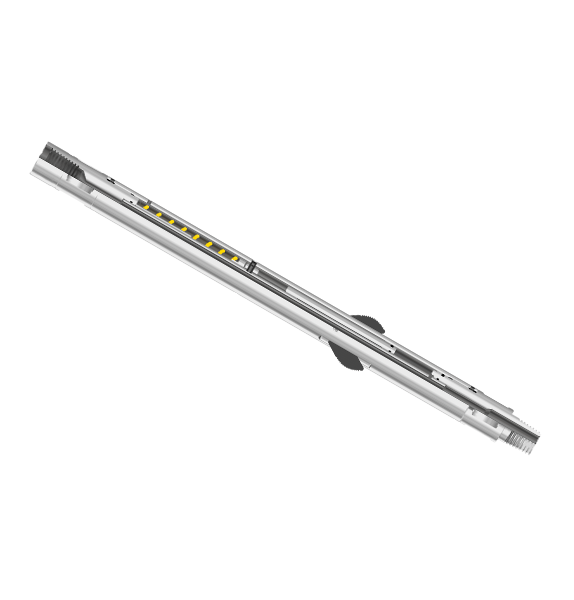

Hydraulic Anchor
To be the leading manufacturer of downhole tools
  • introduction
  • Features
  • Specifications
Product introduction

Hydraulic anchor consists of four anchor paws that can be extended to the inner wall of the string to anchor and centralize the tool by fluid differential pressure.  After stopping the pumping fluid, the anchor paws retract into the tool for the spring force, then anchoring released.

Product Features
Wide anchoring extension
Four anchor paws for high stability
Specifications

OD (mm)

ID(mm)

Connection

Length (mm)

Anchor Extension

Pressure Rating (MPa)

439.41"AMMT76873-88.935
44.59.41"AMMT76873-88.935
5412.71-1/2"AMMT825.788.9-114.335
73192-3/8"PAC990114.3-139.735
88.925.4NC261050127-139.735
Product introduction

Hydraulic anchor consists of four anchor paws that can be extended to the inner wall of the string to anchor and centralize the tool by fluid differential pressure.  After stopping the pumping fluid, the anchor paws retract into the tool for the spring force, then anchoring released.

Product Features
Wide anchoring extension
Four anchor paws for high stability
Specifications

OD (mm)

ID(mm)

Connection

Length (mm)

Anchor Extension

Pressure Rating (MPa)

439.41"AMMT76873-88.935
44.59.41"AMMT76873-88.935
5412.71-1/2"AMMT825.788.9-114.335
73192-3/8"PAC990114.3-139.735
88.925.4NC261050127-139.735
