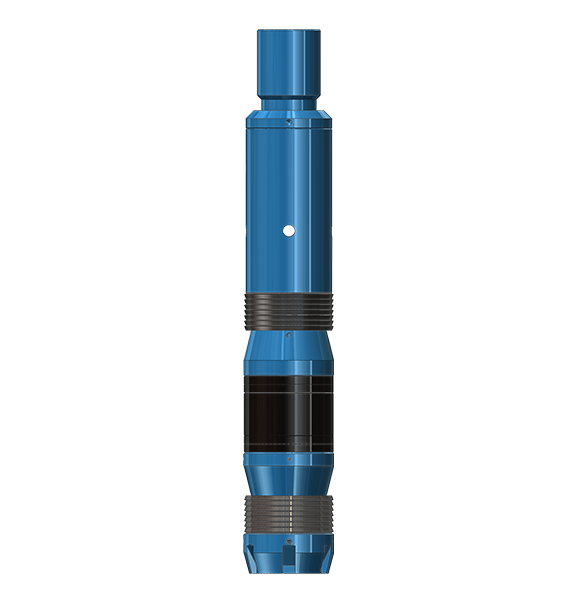

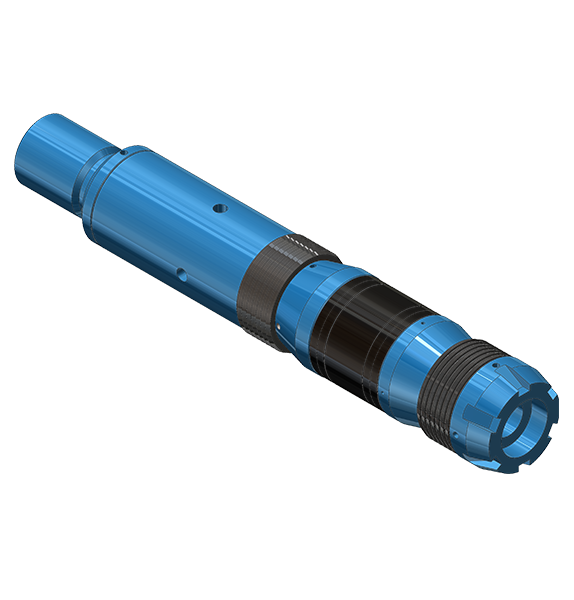

Model GHMB Hydro-Mech Set Bridge Plugs are used for temporary or permanent isolation of oil, gas and water, such as zone isolation, formation fracturing, acidizing. These bridge plug can be set by drop a ball and up lift, do not need any setting tools. They are available for 4 1/4” through 20” setting range.
Compact, easy running.
No need for special setting tools, just pitch the ball to press and then lift and set.
Drop can be right-handed rotation.
Integral rubber and smooth metal ring form a reliable sealing system.
Can withstand higher pressure, up to 70MPa (10,000psi) differential pressure for sizes 7” and below.
The recommended temperature for conventional glum cover is within 148°C (300°F), and rubbers up to 204°C (400°F) are available.
Specifications | |||||||
Casing OD (in) | Casing Wt (lbs/ft) | Setting range | Tool OD (in) | Pressure (PSI) | Release force (lbs) | Top connection thread | |
Min (in) | Max (in) | ||||||
| 4 1/2 | 9.5-16.6 | 3.826 | 4.09 | 3.59 | 10,000 | 33,000 | 2 3/8";EUE BOX |
| 5 | 11.5-20.8 | 4.154 | 4.56 | 3.93 | |||
| 5 1/2 | 13-23 | 4.58 | 5.044 | 4.31 | |||
| 5 3/4 | 14-25.2 | 4.89 | 5.29 | 4.7 | |||
| 6 5/8 | 17-32 | 5.595 | 6.135 | 5.37 | 50,000 | 2 7/8";EUE BOX | |
| 7 | 23-35 | 5.938 | 6.366 | 5.68 | |||
| 7 | 17-23 | 6.336 | 6.538 | 6 | |||
| 7 5/8 | 20-39 | 6.625 | 7.125 | 6.31 | |||
| 8 5/8 | 24-49 | 7.31 | 8.097 | 7.12 | |||
| 9 5/8 | 29.3-58.5 | 8.435 | 9.063 | 8.12 | 8,000 | 3 1/2";IF BOX | |
| 10 3/4 | 32.7-60.7 | 9.66 | 10.192 | 9.43 | 5,000 | ||
| 11 3/4 | 38-60 | 10.772 | 11.15 | 10.43 | 4,000 | ||
| 13 3/8 | 48-84.5 | 12.175 | 12.715 | 11.88 | 3,000 | 4 1/2";IF BOX | |
| 16 | 65-118 | 14.576 | 15.25 | 14.12 | 1,500 | ||
| 20 | 94-133 | 18.73 | 19.124 | 18.37 | |||
Model GHMB Hydro-Mech Set Bridge Plugs are used for temporary or permanent isolation of oil, gas and water, such as zone isolation, formation fracturing, acidizing. These bridge plug can be set by drop a ball and up lift, do not need any setting tools. They are available for 4 1/4” through 20” setting range.
Compact, easy running.
No need for special setting tools, just pitch the ball to press and then lift and set.
Drop can be right-handed rotation.
Integral rubber and smooth metal ring form a reliable sealing system.
Can withstand higher pressure, up to 70MPa (10,000psi) differential pressure for sizes 7” and below.
The recommended temperature for conventional glum cover is within 148°C (300°F), and rubbers up to 204°C (400°F) are available.
Specifications | |||||||
Casing OD (in) | Casing Wt (lbs/ft) | Setting range | Tool OD (in) | Pressure (PSI) | Release force (lbs) | Top connection thread | |
Min (in) | Max (in) | ||||||
| 4 1/2 | 9.5-16.6 | 3.826 | 4.09 | 3.59 | 10,000 | 33,000 | 2 3/8";EUE BOX |
| 5 | 11.5-20.8 | 4.154 | 4.56 | 3.93 | |||
| 5 1/2 | 13-23 | 4.58 | 5.044 | 4.31 | |||
| 5 3/4 | 14-25.2 | 4.89 | 5.29 | 4.7 | |||
| 6 5/8 | 17-32 | 5.595 | 6.135 | 5.37 | 50,000 | 2 7/8";EUE BOX | |
| 7 | 23-35 | 5.938 | 6.366 | 5.68 | |||
| 7 | 17-23 | 6.336 | 6.538 | 6 | |||
| 7 5/8 | 20-39 | 6.625 | 7.125 | 6.31 | |||
| 8 5/8 | 24-49 | 7.31 | 8.097 | 7.12 | |||
| 9 5/8 | 29.3-58.5 | 8.435 | 9.063 | 8.12 | 8,000 | 3 1/2";IF BOX | |
| 10 3/4 | 32.7-60.7 | 9.66 | 10.192 | 9.43 | 5,000 | ||
| 11 3/4 | 38-60 | 10.772 | 11.15 | 10.43 | 4,000 | ||
| 13 3/8 | 48-84.5 | 12.175 | 12.715 | 11.88 | 3,000 | 4 1/2";IF BOX | |
| 16 | 65-118 | 14.576 | 15.25 | 14.12 | 1,500 | ||
| 20 | 94-133 | 18.73 | 19.124 | 18.37 | |||
