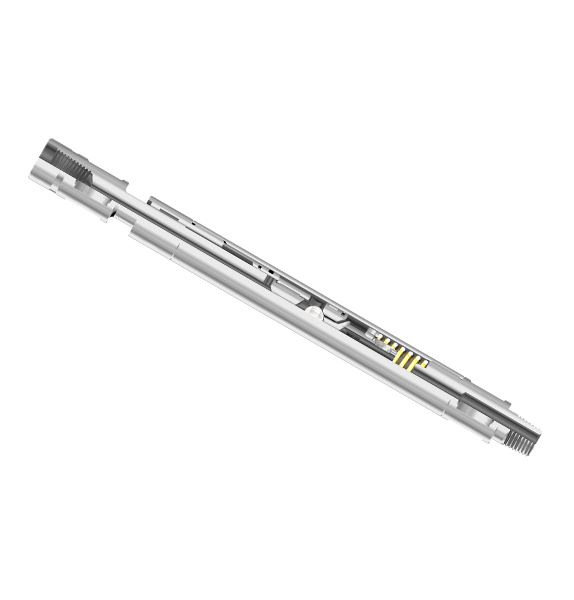

Impact hammer can achieve high frequency upward or downward impact. When the tool is stuck in the hole, the hammer can be activated by pumping fluid or pulling up or down the coiled tubing. The hammer can be used in sliding sleeve switch to fish and descaling, when used with mechanical accelerator can increase the impact force.
l High frequency up/down impact.
l No need to lift or lower coiled tubing during impact
Metal seal.
OD (mm) | Connection | Flow Rate (Lpm) |
| 43 | 1"AMMT | 75.7-151 |
| 54 | 1-1/2"AMMT | 113.5-227 |
| 73 | 2-3/8"PAC | 303-454 |
| 79 | 2-3/8"PAC | 303-454 |
Impact hammer can achieve high frequency upward or downward impact. When the tool is stuck in the hole, the hammer can be activated by pumping fluid or pulling up or down the coiled tubing. The hammer can be used in sliding sleeve switch to fish and descaling, when used with mechanical accelerator can increase the impact force.
l High frequency up/down impact.
l No need to lift or lower coiled tubing during impact
Metal seal.
OD (mm) | Connection | Flow Rate (Lpm) |
| 43 | 1"AMMT | 75.7-151 |
| 54 | 1-1/2"AMMT | 113.5-227 |
| 73 | 2-3/8"PAC | 303-454 |
| 79 | 2-3/8"PAC | 303-454 |
