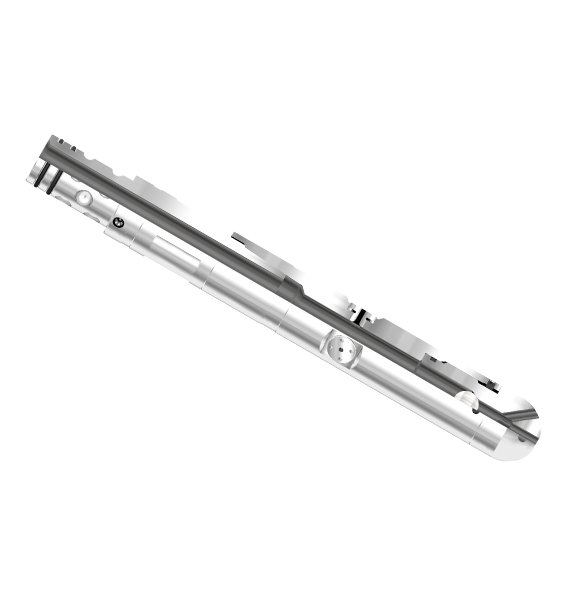

The integrated jetting sub combines the function of coiled tubing connector, jetting sub and washing tool, which can be used in conventional sand washing and gas lift operation. When it is necessary to perforate, steel ball is needed on ground to block washing part for perforation and directional acidification operation.
CT Size | OD(mm) | ID (mm) | Connection | Length (mm) |
| 1-1/2" | 38 | 13 | 1"AMMT | 267 |
| 1-3/4" | 44 | 17 | 1"AMMT | 282 |
| 2" | 51 | 20 | 1-1/2"AMMT | 434 |
| 2-3/8" | 60 | 25 | 2-3/8"PAC | 460 |
The integrated jetting sub combines the function of coiled tubing connector, jetting sub and washing tool, which can be used in conventional sand washing and gas lift operation. When it is necessary to perforate, steel ball is needed on ground to block washing part for perforation and directional acidification operation.
CT Size | OD(mm) | ID (mm) | Connection | Length (mm) |
| 1-1/2" | 38 | 13 | 1"AMMT | 267 |
| 1-3/4" | 44 | 17 | 1"AMMT | 282 |
| 2" | 51 | 20 | 1-1/2"AMMT | 434 |
| 2-3/8" | 60 | 25 | 2-3/8"PAC | 460 |
