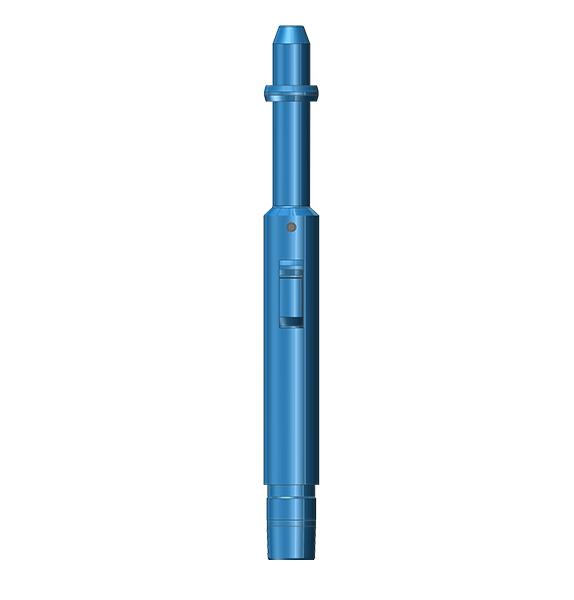

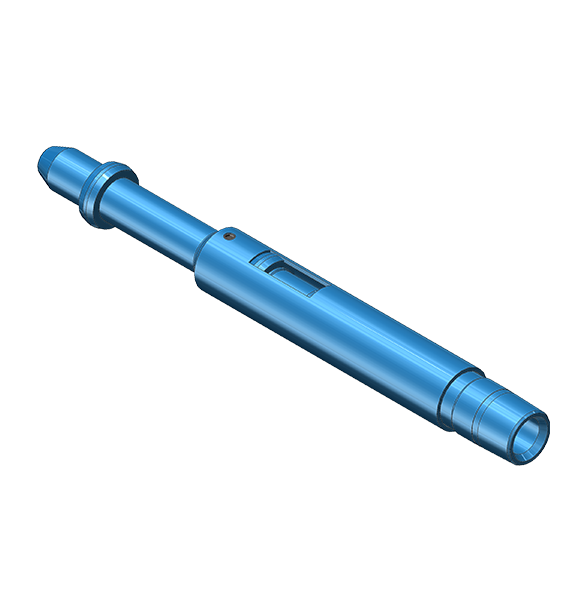

The GKV-1 K-valve or K-connection valve can convert G-Lock-Set Retrievable Packer or GAS1X Retrievable Packer into Retrievable Bridge Plug. The GKV can be used at any time to create temporary zonal isolation when testing, squeezing or treating the wellbore, as well as when performing any work on the well head. The valve allows pressure to be equalized above and below the packer prior to releasing.
Lock open/closed.
Molded seals for multiple sets.
Running tool utilizes auto jay reconnect.
Specifications | ||
Tool ID (in) | Tool OD (in) | Connection thread |
| 2 3/8 | 3 | 2 3/8″EU8RD |
| 2 7/8 | 3.5 | 2 7/8″EU8RD |
The GKV-1 K-valve or K-connection valve can convert G-Lock-Set Retrievable Packer or GAS1X Retrievable Packer into Retrievable Bridge Plug. The GKV can be used at any time to create temporary zonal isolation when testing, squeezing or treating the wellbore, as well as when performing any work on the well head. The valve allows pressure to be equalized above and below the packer prior to releasing.
Lock open/closed.
Molded seals for multiple sets.
Running tool utilizes auto jay reconnect.
Specifications | ||
Tool ID (in) | Tool OD (in) | Connection thread |
| 2 3/8 | 3 | 2 3/8″EU8RD |
| 2 7/8 | 3.5 | 2 7/8″EU8RD |
