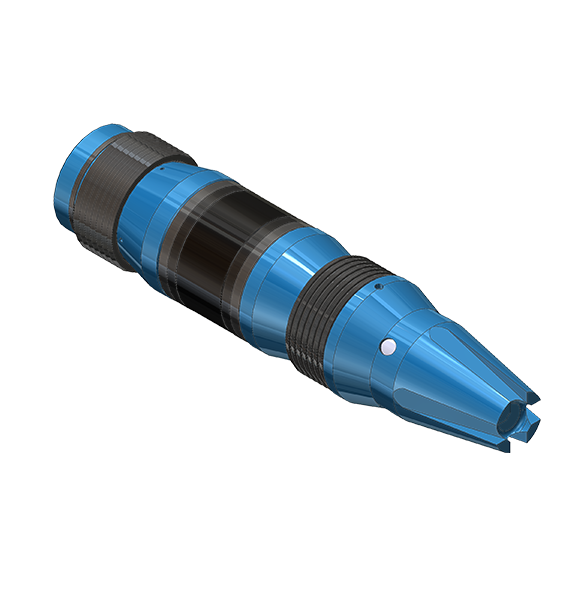

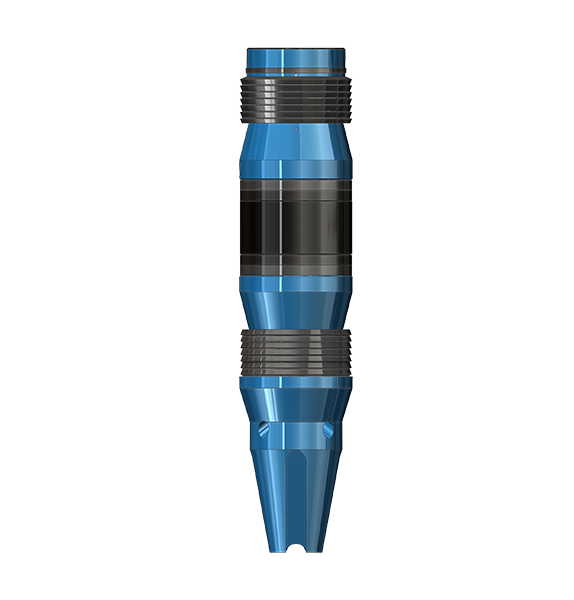

Model GMR Tubing Set Sleeve Valve Cement Retainers are used for secondary cementing operations. These drillable retainers set securely in any hardness casing. A ratchet lock ring stores the setting force in the retainer. The one piece packing element and metal back up rings combine for a superior seal. The case hardened, one piece slips virtually eliminate premature setting, yet can be easily drilled out.
Set with Model GSR Mechanical Setting Tool.
Easily drilled out.
The oil pipe is connected and run without additional equipment.
Set and squeeze in one trip.
Ratchet lock rings secure dynamic setting force.
One piece packing element and rocker action metal back up rings combine for a superior seal.
Can withstand higher pressure, 7” and below specifications can withstand up to 70MPa (10000psi) differential pressure.
The recommended operating temperature for conventional gum cover is within 148°C (300°F). Packing element available up to 204°C (400°F).
Specifications | ||||||
Casing OD (in) | Casing Wt (lbs/ft) | Setting Range | Tool OD (in) | Release Force (lbs) | ||
| Min(in) | Max(in) | |||||
| 4 1/2 | 9.5-16.6 | 3.826 | 4.09 | 3.59 | 33,000 | |
| 5 | 11.5-20.8 | 4.156 | 4.56 | 3.93 | ||
| 5 1/2 | 13-23 | 4.58 | 5.044 | 4.31 | ||
| 5 3/4 | 14-26 | 4.89 | 5.29 | 4.7 | ||
| 6 5/8 | 17-32 | 5.595 | 6.135 | 5.37 | 50,000 | |
| 7 | 17-35 | 6.004 | 6.538 | 5.68 | ||
| 7 5/8 | 20-39 | 6.625 | 7.125 | 6.31 | ||
| 8 5/8 | 24-49 | 7.511 | 8.097 | 7.12 | ||
| 9 5/8 | 29.3-58.4 | 8.435 | 9.063 | 8.12 | ||
| 10 3/4 | 32.75-60.7 | 9.66 | 10.192 | 9.43 | ||
| 11 3/4 | 38-60 | 10.772 | 11.15 | 10.43 | ||
| 11 3/4 | 60-83 | 10.192 | 10.772 | 9.94 | ||
| 13 3/8 | 48-80.7 | 12.175 | 12.715 | 11.88 | ||
| 16 | 65-118 | 14.576 | 15.25 | 14.12 | ||
Model GMR Tubing Set Sleeve Valve Cement Retainers are used for secondary cementing operations. These drillable retainers set securely in any hardness casing. A ratchet lock ring stores the setting force in the retainer. The one piece packing element and metal back up rings combine for a superior seal. The case hardened, one piece slips virtually eliminate premature setting, yet can be easily drilled out.
Set with Model GSR Mechanical Setting Tool.
Easily drilled out.
The oil pipe is connected and run without additional equipment.
Set and squeeze in one trip.
Ratchet lock rings secure dynamic setting force.
One piece packing element and rocker action metal back up rings combine for a superior seal.
Can withstand higher pressure, 7” and below specifications can withstand up to 70MPa (10000psi) differential pressure.
The recommended operating temperature for conventional gum cover is within 148°C (300°F). Packing element available up to 204°C (400°F).
Specifications | ||||||
Casing OD (in) | Casing Wt (lbs/ft) | Setting Range | Tool OD (in) | Release Force (lbs) | ||
| Min(in) | Max(in) | |||||
| 4 1/2 | 9.5-16.6 | 3.826 | 4.09 | 3.59 | 33,000 | |
| 5 | 11.5-20.8 | 4.156 | 4.56 | 3.93 | ||
| 5 1/2 | 13-23 | 4.58 | 5.044 | 4.31 | ||
| 5 3/4 | 14-26 | 4.89 | 5.29 | 4.7 | ||
| 6 5/8 | 17-32 | 5.595 | 6.135 | 5.37 | 50,000 | |
| 7 | 17-35 | 6.004 | 6.538 | 5.68 | ||
| 7 5/8 | 20-39 | 6.625 | 7.125 | 6.31 | ||
| 8 5/8 | 24-49 | 7.511 | 8.097 | 7.12 | ||
| 9 5/8 | 29.3-58.4 | 8.435 | 9.063 | 8.12 | ||
| 10 3/4 | 32.75-60.7 | 9.66 | 10.192 | 9.43 | ||
| 11 3/4 | 38-60 | 10.772 | 11.15 | 10.43 | ||
| 11 3/4 | 60-83 | 10.192 | 10.772 | 9.94 | ||
| 13 3/8 | 48-80.7 | 12.175 | 12.715 | 11.88 | ||
| 16 | 65-118 | 14.576 | 15.25 | 14.12 | ||
