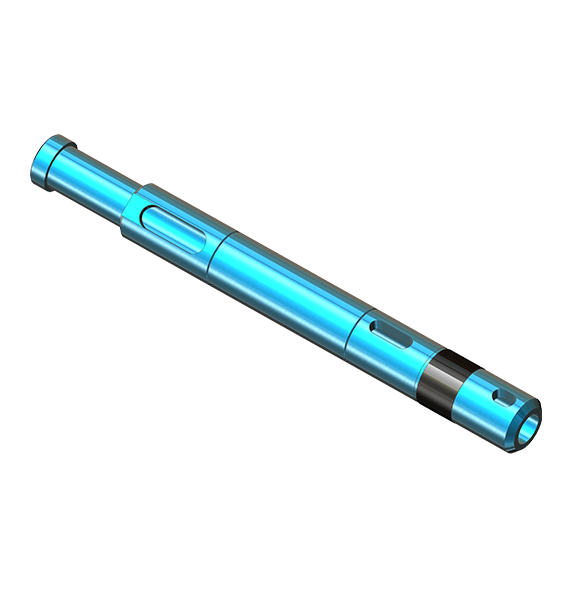

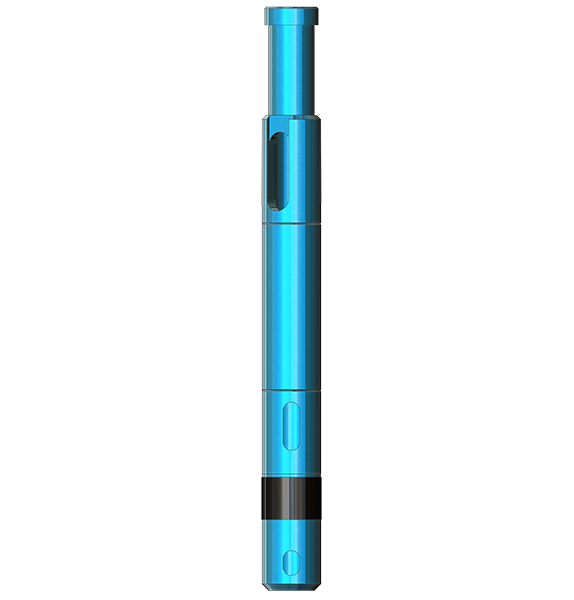

Equalizing Check Valves are sometimes called “Standing Valves” because they prevent fluid flow in one direction (downward) while allowing full fluid flow in the opposite direction(upward). The ‘RB-2” seats on the bottom No Go shoulder of a “R” type profile which prevents downward movement. It is not locked into the profile, and has a built-in method of allowing equalizing before pulling. Use the recycling tool to shock upwards before recycling, cut the pins, and balance the upper and lower pressure.
Delivery tool: model C-1 well feed tool
Recycling tool: model SB well feed/ recycling tool
Fluid flows upwards.
No locking mechanism.
The pressure above the balance valve locks it.
Balance up and down pressure.
Specification | |||
Tubing Size (in) | Seal OD (in) | Max OD (in) | Working Pressure (psi) |
| 2.375 | 1.781 | 1.771 | 5000 |
| 1.812 | 1.802 | ||
| 1.875 | 1.865 | ||
| 2.875 | 2.25 | 2.24 | |
| 2.312 | 2.302 | ||
| 3.5 | 2.75 | 2.74 | |
| 2.813 | 2.802 | ||
