Sand Jetting Tool
To be the leading manufacturer of downhole tools
  • introduction
  • Features
  • Specifications
Product introduction

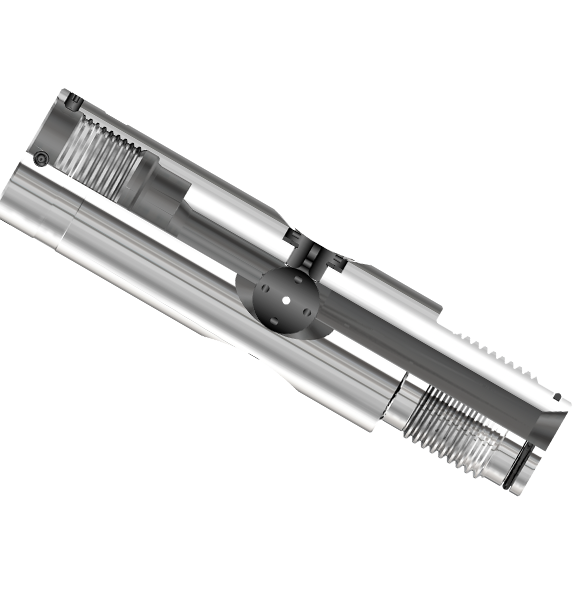

Sand jetting tool is available in a variety of orifice configurations to deliver abrasive fluid through coiled tubing or casing into the formation. Multiple perforations can be performed in one trip and tools can be customized for the required operation. The sandblasting tool can be used to perforate drill pipe, drill collar and multiple casing strings in a single run and can replace TCP or conventional wireline perforation.

Product Features
Nozzle diameter is adjustable
Nozzle phase adjustable
Multi-cluster nozzle design
Anti-wear sleeve design
Specifications

Casing Size

OD(mm)

Nozzle Hole

Connection

4-1/2"734x5mmTr60
5"794x5mmTr60
5-1/2"954x5mmTr60
7"1274x5mmTr75
Product introduction

Sand jetting tool is available in a variety of orifice configurations to deliver abrasive fluid through coiled tubing or casing into the formation. Multiple perforations can be performed in one trip and tools can be customized for the required operation. The sandblasting tool can be used to perforate drill pipe, drill collar and multiple casing strings in a single run and can replace TCP or conventional wireline perforation.

Product Features
Nozzle diameter is adjustable
Nozzle phase adjustable
Multi-cluster nozzle design
Anti-wear sleeve design
Specifications

Casing Size

OD(mm)

Nozzle Hole

Connection

4-1/2"734x5mmTr60
5"794x5mmTr60
5-1/2"954x5mmTr60
7"1274x5mmTr75
