Stab-in Float Collar/Shoe-GRIFCO OIL TOOLS

Product introduction

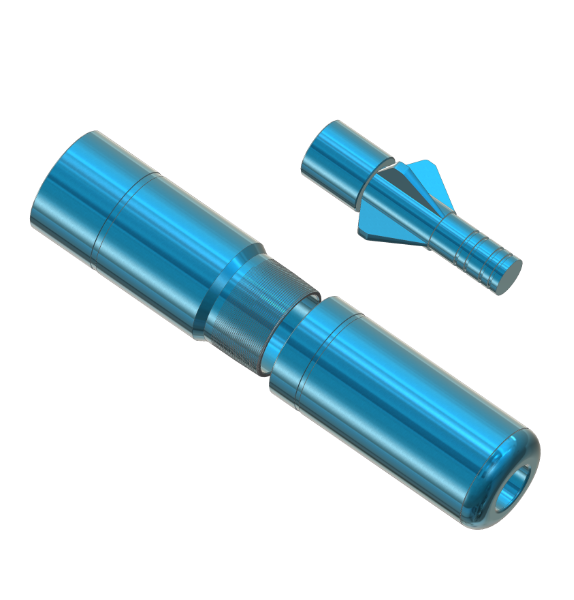

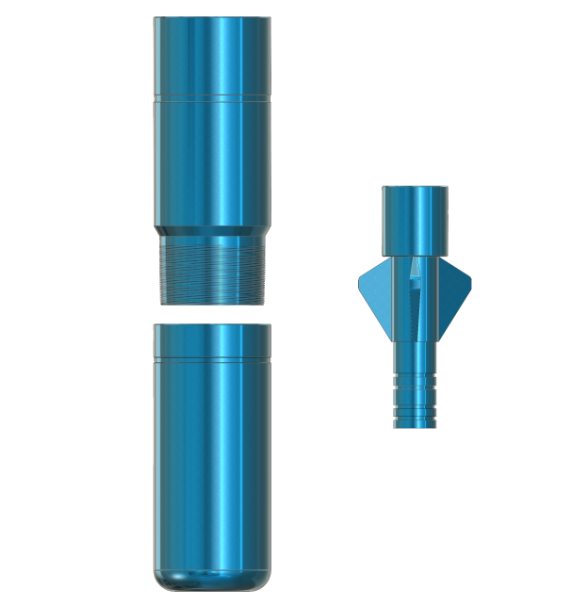

Stab-in Float Collar/Shoe

Product Features

The Stab-in Shoe and Collar is made of the drillable materials, such as cement, non-metal valve, and copper spring.

High tensile strength and high pressure rating

Specifications

Size		Casing		Anti-back pressure capability MPa	Insert sealing capacity MPa
in	mm	lb/ft	mm	Anti-back pressure capability MPa	Insert sealing capacity MPa
9-5/8	244.5	32.30-58.40	7.92-15.11	35	14
10-3/4	273.1	32.75-73.2	7.09-17.07	35	14
11-3/4	298.5	42.00-71.00	8.46-14.78	35	14
13-3/8	339.7	48.00-72.00	8.38-13.06	28	14
16	406.4	65.00-109.00	9.52-16.66	21	14
18-5/8	473.1	87.5	11.05	14	14
20	508	94.00-133.00	11.13-16.13	14	14

Product introduction

Stab-in Float Collar/Shoe

Product Features

The Stab-in Shoe and Collar is made of the drillable materials, such as cement, non-metal valve, and copper spring.

High tensile strength and high pressure rating

Specifications

Size		Casing		Anti-back pressure capability MPa	Insert sealing capacity MPa
in	mm	lb/ft	mm	Anti-back pressure capability MPa	Insert sealing capacity MPa
9-5/8	244.5	32.30-58.40	7.92-15.11	35	14
10-3/4	273.1	32.75-73.2	7.09-17.07	35	14
11-3/4	298.5	42.00-71.00	8.46-14.78	35	14
13-3/8	339.7	48.00-72.00	8.38-13.06	28	14
16	406.4	65.00-109.00	9.52-16.66	21	14
18-5/8	473.1	87.5	11.05	14	14
20	508	94.00-133.00	11.13-16.13	14	14
