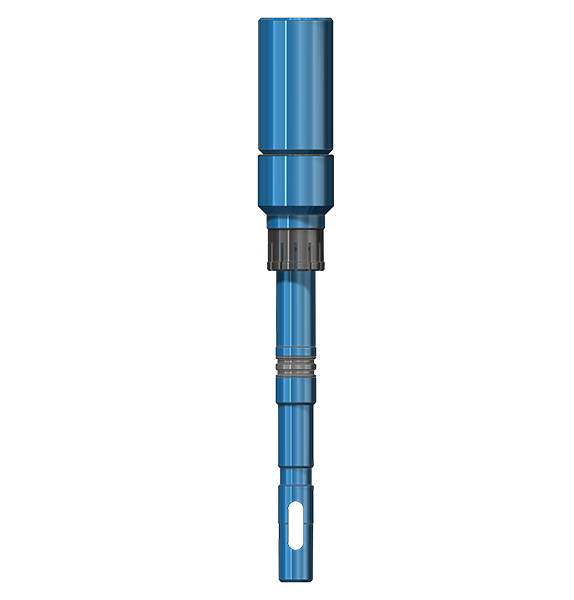

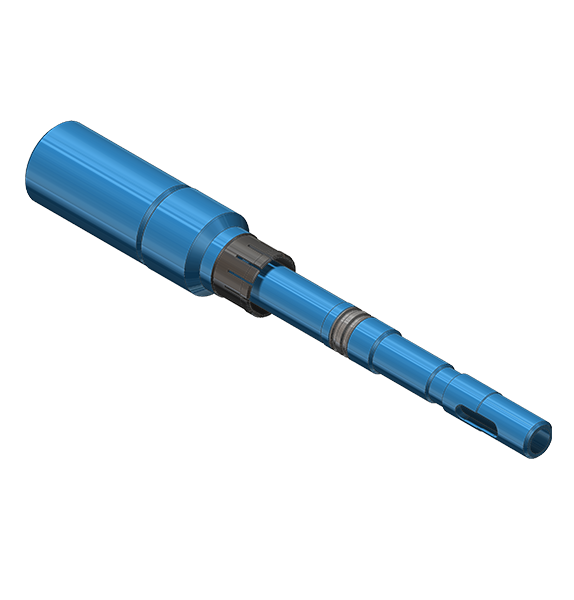

Model GSS Stinger Seal Assembly is a tubing conveyed latching seal assembly that is used to operate the sleeve-valve in an GWR Cement retainer previously set on wireline line. The GSS should always be run with a GTC Tubing Centralizer to provide for easier entry into the Cement retainer.
Provide positive control when the work string is picked up to close the sleeve-valve.
Re-engages each time the work string is lowered to open sleeve-valve.
Detent mechanism prevents cannula from disengaging from retainer during squeezing or tubing testing.
One size operates several sizes of retainers.
Rotate or Snap-out release.
Specification | |||
Casing OD (in) | Casing Wt (lbs/ft) | Retainer OD (in) | Connection Thread |
| 4 1/2 | 9.5-16.6 | 3.59 | 2 3/8"-8RD EU |
| 5 | 11.5-20.8 | 3.93 | |
| 5 1/2 | 13-23 | 4.31 | |
| 14-26 | 4.7 | ||
| 6 5/8 | 17-32 | 5.37 | 2 7/8"-8RD EU |
| 7 | 17-35 | 5.68 | |
| 7 5/8 | 20-39 | 6.31 | |
| 8 5/8 | 24-49 | 7.12 | |
| 9 5/8 | 29.3-58.4 | 8.12 | |
| 10 3/4 | 32.75-60.7 | 9.43 | |
| 11 3/4 | 38-60 | 10.43 | |
| 11 3/4 | 60-83 | 9.94 | |
| 13 3/8 | 48-80.7 | 11.88 | |
| 16 | 65-118 | 14.12 | |
| 20 | 94-133 | 18.37 | |
Model GSS Stinger Seal Assembly is a tubing conveyed latching seal assembly that is used to operate the sleeve-valve in an GWR Cement retainer previously set on wireline line. The GSS should always be run with a GTC Tubing Centralizer to provide for easier entry into the Cement retainer.
Provide positive control when the work string is picked up to close the sleeve-valve.
Re-engages each time the work string is lowered to open sleeve-valve.
Detent mechanism prevents cannula from disengaging from retainer during squeezing or tubing testing.
One size operates several sizes of retainers.
Rotate or Snap-out release.
Specification | |||
Casing OD (in) | Casing Wt (lbs/ft) | Retainer OD (in) | Connection Thread |
| 4 1/2 | 9.5-16.6 | 3.59 | 2 3/8"-8RD EU |
| 5 | 11.5-20.8 | 3.93 | |
| 5 1/2 | 13-23 | 4.31 | |
| 14-26 | 4.7 | ||
| 6 5/8 | 17-32 | 5.37 | 2 7/8"-8RD EU |
| 7 | 17-35 | 5.68 | |
| 7 5/8 | 20-39 | 6.31 | |
| 8 5/8 | 24-49 | 7.12 | |
| 9 5/8 | 29.3-58.4 | 8.12 | |
| 10 3/4 | 32.75-60.7 | 9.43 | |
| 11 3/4 | 38-60 | 10.43 | |
| 11 3/4 | 60-83 | 9.94 | |
| 13 3/8 | 48-80.7 | 11.88 | |
| 16 | 65-118 | 14.12 | |
| 20 | 94-133 | 18.37 | |
