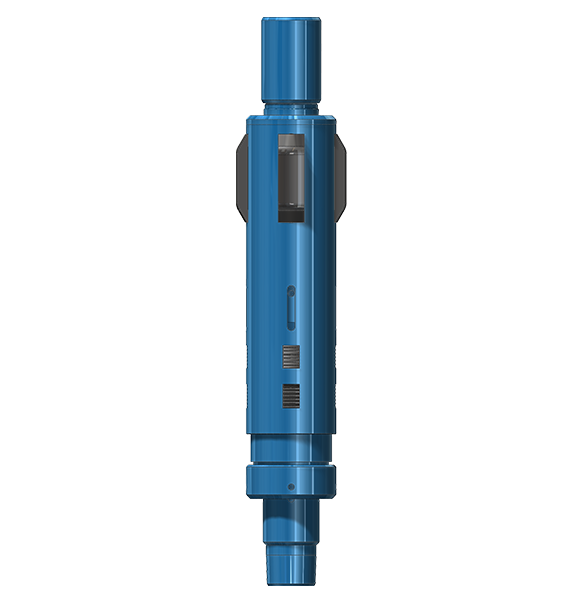

Model GTA Tubing Anchor/Catcher adopts drag block device that replaces the previous drag spring device. It is used to allow placement of tubing in tension.Vertical tubing movement is prevented which in turn lessens sucker rod tubing wear. Their small OD and large ID permits larger volume production capacities.
Model “L”: Left hand release or emergency shear release.
Model “R”: Right hand release or emergency shear release.
Easy adjusted release from 5,000 lbs to 60,000 lbs.
Drag blocks rather than drag springs.
Years of successful use have proven its design reliability. The anchor works reliably and unsealed safely, ensuring that all tools are taken out.
Specifications | ||||||
Casing OD (in) | Casing Wt (lbs/ft) | Setting range | Tool OD (in) | Tool ID (in) | Connection thread | |
| Min(in) | Max(in) | |||||
| 4 1/2 | 9.5-13.5 | 3.92 | 4.09 | 3.75 | 1.93 | 2 3/8"-8RD EU |
| 5 | 13.0-18.0 | 4.276 | 4.491 | 4 | ||
| 5 1/2 | 13.0-23.0 | 4.67 | 5.044 | 4.5 | 2 | |
| 7 | 23.0-40.0 | 5.92 | 6.58 | 5.5 | 2 7/8"-10RD EU | |
| 7 | 17.0-38.0 | 5.92 | 6.58 | 5.76 | 3 | 3 1/2"-8RD EU |
| 2.37 | 2 7/8"-8RD EU | |||||
| R - right-handed setting L - left-handed setting | ||||||
Model GTA Tubing Anchor/Catcher adopts drag block device that replaces the previous drag spring device. It is used to allow placement of tubing in tension.Vertical tubing movement is prevented which in turn lessens sucker rod tubing wear. Their small OD and large ID permits larger volume production capacities.
Model “L”: Left hand release or emergency shear release.
Model “R”: Right hand release or emergency shear release.
Easy adjusted release from 5,000 lbs to 60,000 lbs.
Drag blocks rather than drag springs.
Years of successful use have proven its design reliability. The anchor works reliably and unsealed safely, ensuring that all tools are taken out.
Specifications | ||||||
Casing OD (in) | Casing Wt (lbs/ft) | Setting range | Tool OD (in) | Tool ID (in) | Connection thread | |
| Min(in) | Max(in) | |||||
| 4 1/2 | 9.5-13.5 | 3.92 | 4.09 | 3.75 | 1.93 | 2 3/8"-8RD EU |
| 5 | 13.0-18.0 | 4.276 | 4.491 | 4 | ||
| 5 1/2 | 13.0-23.0 | 4.67 | 5.044 | 4.5 | 2 | |
| 7 | 23.0-40.0 | 5.92 | 6.58 | 5.5 | 2 7/8"-10RD EU | |
| 7 | 17.0-38.0 | 5.92 | 6.58 | 5.76 | 3 | 3 1/2"-8RD EU |
| 2.37 | 2 7/8"-8RD EU | |||||
| R - right-handed setting L - left-handed setting | ||||||
