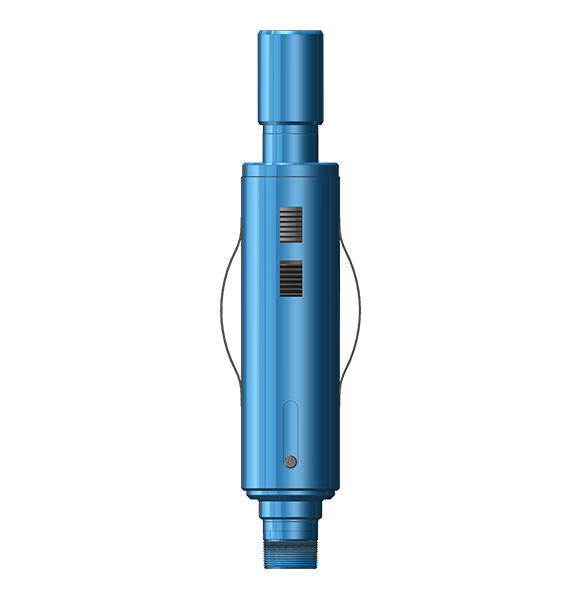

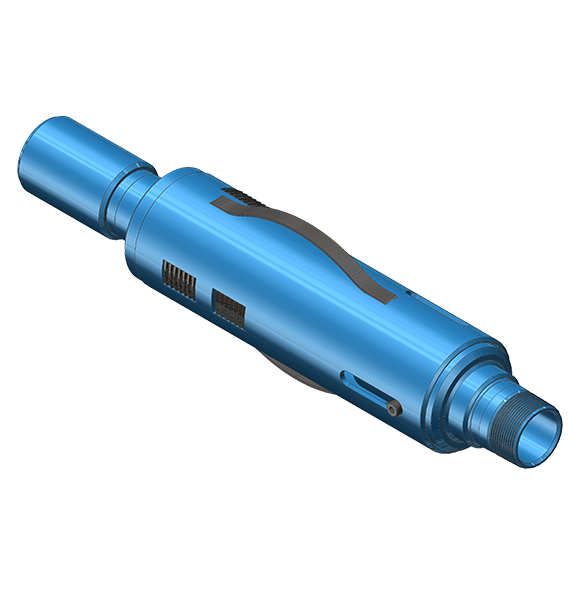

The GAC-B Tubing Anchor acts as a tubing anchor to maintain tension in the tubing string during the pump cycle and as a tubing catcher to prevent parted pipe from falling into the well. It is used in most rod pumping applications where it is important to maintain the tubing tension.
Increases pump efficiency.
Reduces operating costs by reducing maintenance and down time caused by
casing, tubing or sucker rod wear.
Rotates left to set, right to release.
Straight pull emergency release.
Parts interchangeable with other manufactures.
Available with Right Hand Set.
Specifications | ||||||
Casing | Setting range | Tool OD (in) | Tool ID (in) | Connection thread | ||
OD (in) | Casing Wt (lbs/ft) | Min ID (in) | Max ID (in) | |||
| 4 | 9.5-12.6 | 3.364 | 3.548 | 3.25 | 1 | 2 3/8″EU8RD |
| 4 1/2 | 9.5-13.5 | 3.92 | 4.09 | 3.75 | 1.978 | |
| 5 | 11.5-18.0 | 4.276 | 4.56 | 4 | ||
| 5 | 11.5-15.0 | 4.408 | 4.778 | 4.125 | ||
| Feb-51 | 20.0-23.0 | |||||
| 5 1/2 | 13.0-23.0 | 4.67 | 5.044 | 4.5 | 2.375 | |
| 6 | 17.0-23.0 | 5.24 | 5.424 | 4.812 | 2 7/8″EU8RD | |
| 6 5/8 | 28.0-32.0 | 5.675 | 5.791 | 5.125 | ||
| 6 5/8 | 17.0-32.0 | 5.675 | 6.456 | 5.5 | 2.438 | 2 3/8″EU8RD |
| 7 | 20.0-38.0 | 2 7/8″EU8RD | ||||
| 7 | 17.0-20.0 | 6.413 | 7.125 | 6.25 | ||
| 7 5/8 | 20.0-39.0 | |||||
| 6 5/8 | 17.0-32.0 | 5.675 | 6.538 | 5.5 | 3 | 3 1/2″EU8RD |
| 7 | 17.0-38.0 | |||||
| 7 | 17.0-20.0 | 6.413 | 7.125 | 6.26 | ||
| 7 5/8 | 20.0-39.0 | |||||
| 8 5/8 | 24.0-49.0 | 7.25 | 8.093 | 7 | ||
| 9 5/8 | 32.3-47.0 | 8.681 | 9.001 | 8 | ||
The GAC-B Tubing Anchor acts as a tubing anchor to maintain tension in the tubing string during the pump cycle and as a tubing catcher to prevent parted pipe from falling into the well. It is used in most rod pumping applications where it is important to maintain the tubing tension.
Increases pump efficiency.
Reduces operating costs by reducing maintenance and down time caused by
casing, tubing or sucker rod wear.
Rotates left to set, right to release.
Straight pull emergency release.
Parts interchangeable with other manufactures.
Available with Right Hand Set.
Specifications | ||||||
Casing | Setting range | Tool OD (in) | Tool ID (in) | Connection thread | ||
OD (in) | Casing Wt (lbs/ft) | Min ID (in) | Max ID (in) | |||
| 4 | 9.5-12.6 | 3.364 | 3.548 | 3.25 | 1 | 2 3/8″EU8RD |
| 4 1/2 | 9.5-13.5 | 3.92 | 4.09 | 3.75 | 1.978 | |
| 5 | 11.5-18.0 | 4.276 | 4.56 | 4 | ||
| 5 | 11.5-15.0 | 4.408 | 4.778 | 4.125 | ||
| Feb-51 | 20.0-23.0 | |||||
| 5 1/2 | 13.0-23.0 | 4.67 | 5.044 | 4.5 | 2.375 | |
| 6 | 17.0-23.0 | 5.24 | 5.424 | 4.812 | 2 7/8″EU8RD | |
| 6 5/8 | 28.0-32.0 | 5.675 | 5.791 | 5.125 | ||
| 6 5/8 | 17.0-32.0 | 5.675 | 6.456 | 5.5 | 2.438 | 2 3/8″EU8RD |
| 7 | 20.0-38.0 | 2 7/8″EU8RD | ||||
| 7 | 17.0-20.0 | 6.413 | 7.125 | 6.25 | ||
| 7 5/8 | 20.0-39.0 | |||||
| 6 5/8 | 17.0-32.0 | 5.675 | 6.538 | 5.5 | 3 | 3 1/2″EU8RD |
| 7 | 17.0-38.0 | |||||
| 7 | 17.0-20.0 | 6.413 | 7.125 | 6.26 | ||
| 7 5/8 | 20.0-39.0 | |||||
| 8 5/8 | 24.0-49.0 | 7.25 | 8.093 | 7 | ||
| 9 5/8 | 32.3-47.0 | 8.681 | 9.001 | 8 | ||
