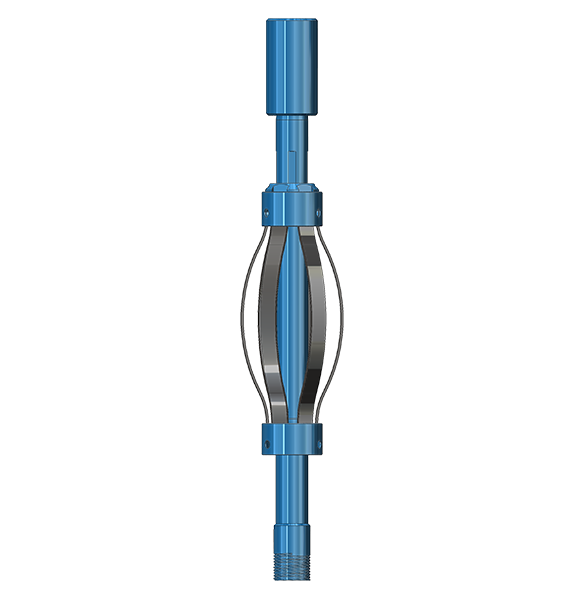

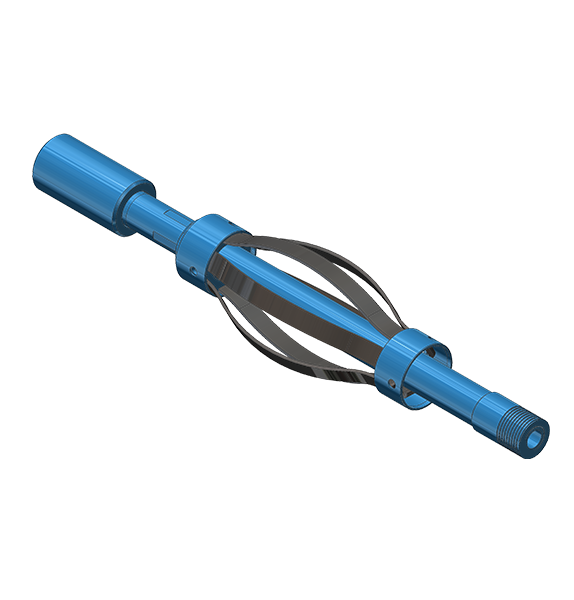

Model GTC Tubing Centralizer is used to center the tubing and provide for easier entry into an GWR Cement retainer previously set by wireline.
Provide positive control and allows one size Tubing centralizer to cover a large
range of casing weights.
Allows tubing torque to be transmitted to tools below.
Good centralizer effect and easy maintenance.
Specification | |||
Casing OD (in) | Casing Wt (lbs/ft) | Connection Thread | ID (in) |
| 4 1/2 | 9.5-16.6 | 2 3/8"-8RD EU | 1 |
| 5 | 11.5-20.8 | ||
| 5 1/2 | 23 | ||
| 5 1/2 | 13-23 | ||
| 5 3/4 | 14-26 | ||
| 6 5/8 | 17-32 | 2 7/8"-8RD EU | 2.5 |
| 7 | 17-35 | ||
| 7 5/8 | 20-39 | ||
| 8 5/8 | 24-49 | ||
| 9 5/8 | 29.3-58.4 | ||
| 10 3/4 | 32.75-60.7 | ||
| 11 3/4 | 38-60 | ||
| 11 3/4 | 60-83 | ||
| 13 3/8 | 48-80.7 | ||
| 16 | 65-118 | ||
| 20 | 94-133 | ||
