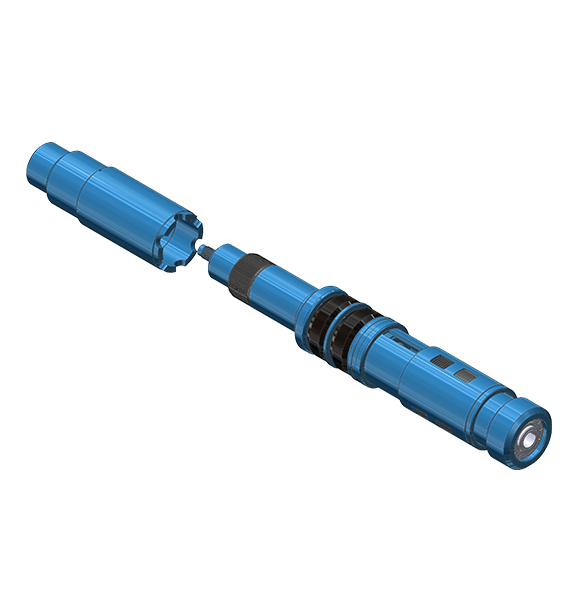

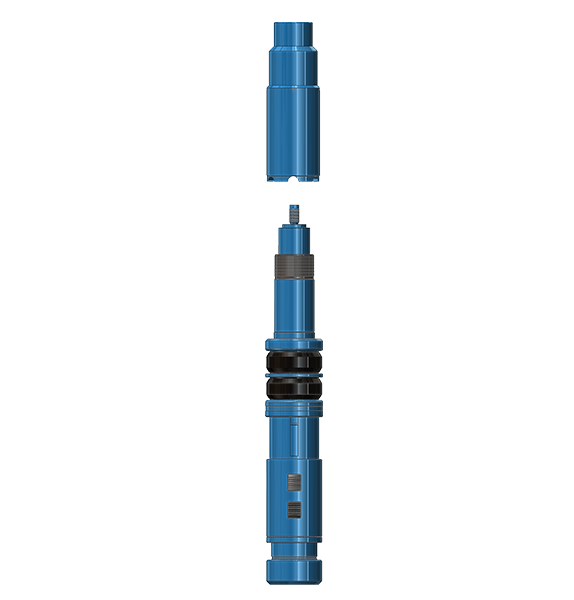

Model ”GRWB” wireline set retrievable bridge plug is a medium performance retrievable bridge plug that is run and set by a wireline pressure setting tool and retrieved by either tubing or sandline. The plug is used for zone isolation, formation fracturing, acidizing, and wellhead repair.
Can be set directly with cable setting tools or hydraulic setting tools.
No rotation is required to retrieve.
Balanced equalizing valve opens upwardly which reduces possibility of accidental opening.
Ratchet lock ring maintains setting load for safe setting under pressure changes.
Caged, bi-directional, one piece slips are located below the packing and firmly anchor the plug against pressure differentials from above or below.
Can withstand higher pressure, 7” and below specifications can withstand up to 50MPa (7000psi) differential pressure.
The recommended operating temperature for conventional gum cover is within 148°C (300°F).
Specifications | |||||
Casing OD (in) | Casing Wt (lbs/ft) | Setting range | Tool OD (in) | Setting force (lbs) | |
| Min(in) | Max(in) | ||||
| 4-1/2" | 9.5-13.5 | 3.92 | 4.09 | 3.771 | 30,000 |
| 5 | 15-18 | 4.276 | 4.408 | 4.125 | |
| 5-1/2" | 20-23 | 4.67 | 4.778 | 4.5 | |
| 15.5-20 | 4.778 | 4.95 | 4.641 | ||
| 13-15.5 | 4.95 | 5.044 | 4.781 | ||
| 6-5/8" | 24-32 | 5.675 | 5.921 | 5.5 | 55,000 |
| 7" | 32-35 | 6.004 | 6.094 | 5.812 | |
| 26-29 | 6.184 | 6.276 | 5.968 | ||
| 23-26 | 6.276 | 6.366 | 6.078 | ||
| 17-20 | 6.456 | 6.538 | 6.266 | ||
| 7-5/8" | 33.7-39 | 6.625 | 6.765 | 6.453 | |
| 24-29.7 | 6.875 | 7.025 | 6.672 | ||
| 8-5/8" | 32-40 | 7.725 | 7.921 | 7.531 | |
| 9-5/8" | 40-47 | 8.681 | 8.835 | 8.437 | |
| 47-53.5 | 8.535 | 8.681 | 8.218 | ||
