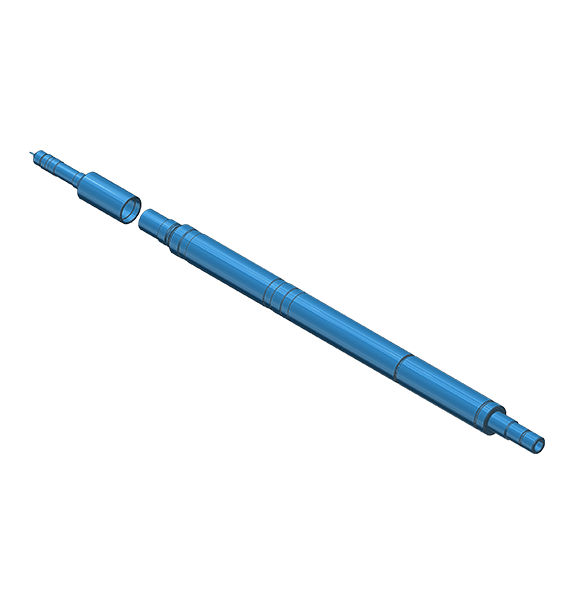

Wireline setting tools is used to set bridge pugs, production packer or cement retainers. The force is created by the gradual burning of a high temperature power charge which produces high pressure gas that is contained by an o-ring sealed top piston. The piston applies the necessary stroke and tension to set and release from the equipment.
Set bridge pugs, production packer or cement retainers.
High temperature grain burning.
Can generate high pressure gas.
Generate corresponding stroke and push.
Specifications | |||||
Model | Type | Tool OD (in) | Max temperature/pressure (℉/PSI) | Setting force MAX (lbs) | Max wellbore fluid pressure (PSI) |
GWSB | #20 | 3 1/2 | 400 / 20,000 | 60,000 | 15,000 |
GWSG | GO |
1.72 | 400 / 10,000 | 15,000 | 10,000 |
3 1/2 | 400 / 15,000 | 60,000 | 8,000 | ||
3 1/2 | 400 / 20,000 | 60,000 | 15,000 | ||

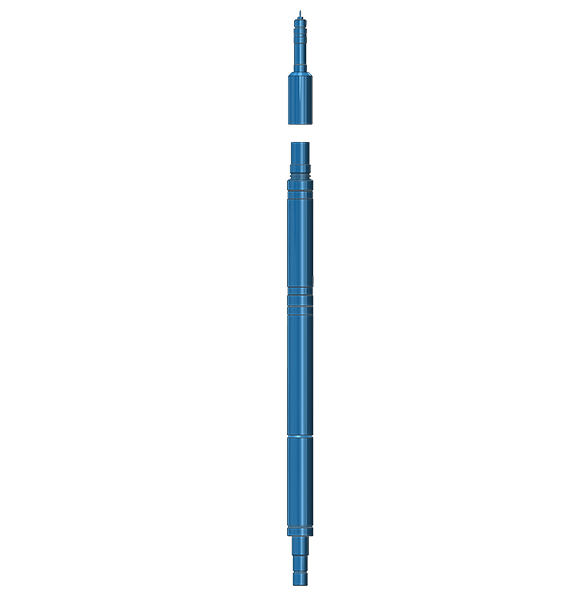

Wireline setting tools is used to set bridge pugs, production packer or cement retainers. The force is created by the gradual burning of a high temperature power charge which produces high pressure gas that is contained by an o-ring sealed top piston. The piston applies the necessary stroke and tension to set and release from the equipment.
Set bridge pugs, production packer or cement retainers.
High temperature grain burning.
Can generate high pressure gas.
Generate corresponding stroke and push.
Specifications | |||||
Model | Type | Tool OD (in) | Max temperature/pressure (℉/PSI) | Setting force MAX (lbs) | Max wellbore fluid pressure (PSI) |
GWSB | #20 | 3 1/2 | 400 / 20,000 | 60,000 | 15,000 |
GWSG | GO |
1.72 | 400 / 10,000 | 15,000 | 10,000 |
3 1/2 | 400 / 15,000 | 60,000 | 8,000 | ||
3 1/2 | 400 / 20,000 | 60,000 | 15,000 | ||
