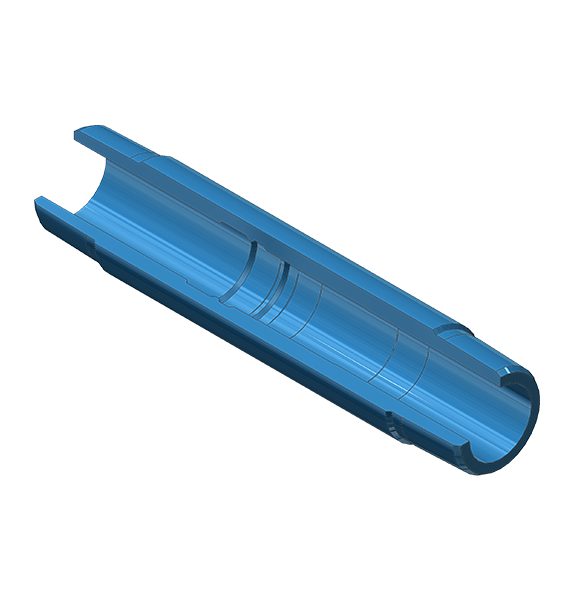

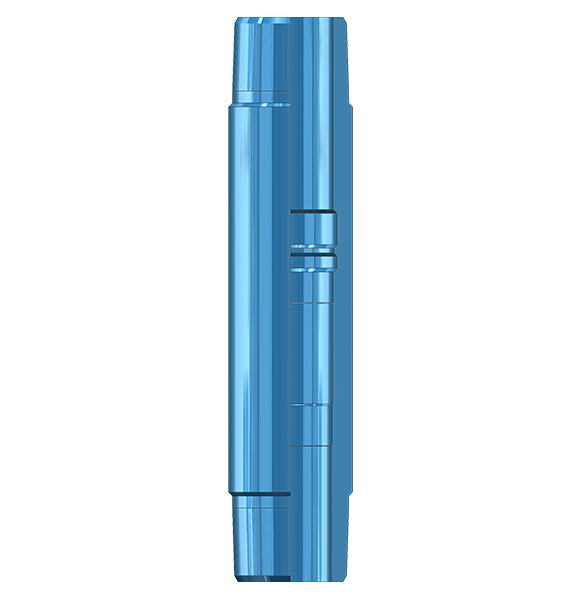

The Model “X” Profile Nipple offers an expanded versatility to downhole selection. Any desired number of “X” Nipples can be placed in the production string, thereby offering an unlimited number of positions for setting and locking surface controls.
Optional
Longer sealed bore
Same strength as standard tubing
Various buckle types available
Specifications | ||||
Size (in) | OD (in) | Seal Bore (in) | Pressure (psi) | Connection Thread |
| 1.9 | 2.2 | 1.5 | 10,000 | 1.90"; EUE |
| 2.375 | 2.75 | 1.875 | 2 3/8"; EUE | |
| 2.875 | 3.3 | 2.313 | 2 7/8"; EUE | |
| 3.5 | 4 | 2.75 | 3 1/2"; EUE | |
| 2.813 | ||||
The Model “X” Profile Nipple offers an expanded versatility to downhole selection. Any desired number of “X” Nipples can be placed in the production string, thereby offering an unlimited number of positions for setting and locking surface controls.
Optional
Longer sealed bore
Same strength as standard tubing
Various buckle types available
Specifications | ||||
Size (in) | OD (in) | Seal Bore (in) | Pressure (psi) | Connection Thread |
| 1.9 | 2.2 | 1.5 | 10,000 | 1.90"; EUE |
| 2.375 | 2.75 | 1.875 | 2 3/8"; EUE | |
| 2.875 | 3.3 | 2.313 | 2 7/8"; EUE | |
| 3.5 | 4 | 2.75 | 3 1/2"; EUE | |
| 2.813 | ||||
