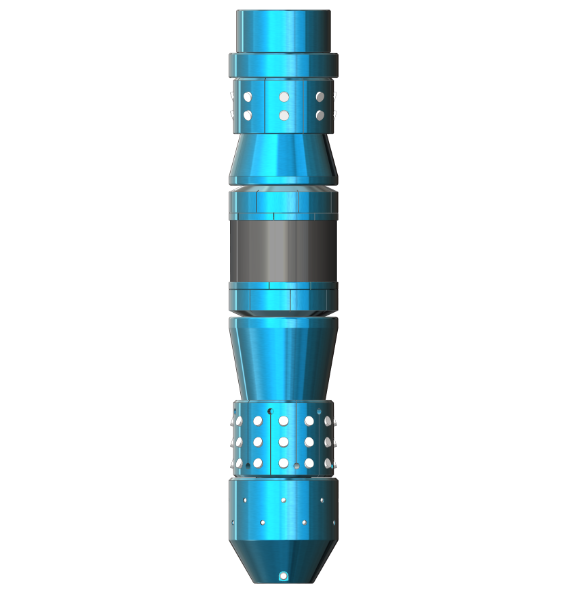

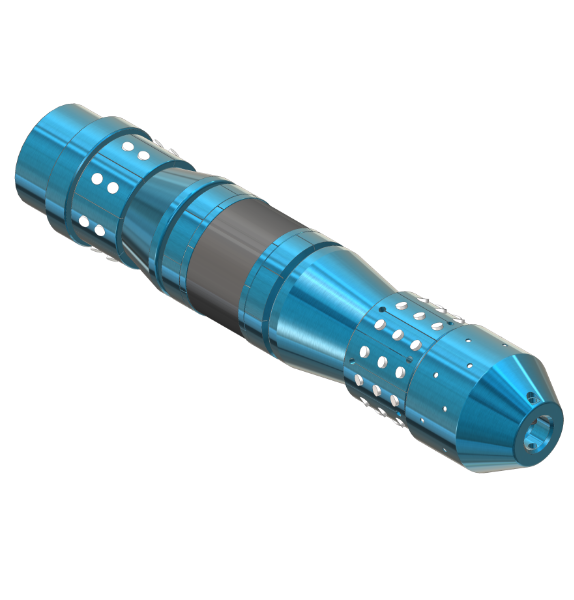

During plug-and-perf completion system, Grifco made frac plugs are reliable and completely dissolvable after fracturing, with a full bore accessed, eiminating need for drilling after fracturing. It saves construction time and reduces operating costs. Magic dissolvable frac plugs can meet different requirements under various well conditions with temperature ranging from 30 to 150℃. Dissolvable frac plug of different sizes, structures and temperature ratings can be customized according to customer needs.
Double slip, single slip, all metal seal, ball cage and other structural options.
Special coating process, resistant to high concentration hydrochloric acid, suitable for acid pressing.
High strength of body material.
Completely dissolve, controllable dissolution speed, water soluble.
Short length, small outer diameter, large inner diameter, fast pumping speed.
Anti-pre-set design.
Type | Casing ID （㎜） | OD （㎜） | ID （㎜） | Length （㎜） | Pressure （MPa） | Temperature （℃ ） | Dissolved liquid | Dissolved time | Setting Tool |
| GM-110 | 121.4-124.3 | 110 | 30-50 | ≤450 | 70 | Low temperature 30 | Clear water | 3-7 Day | BAKER 20# |
| GM-108 | 121.3 | 108 | 30-50 | ≤450 | High temperature 150 | ||||
| GM-104 | 118.6 | 104 | 30-45 | ≤450 | |||||
| GM-102 | 114.3 | 102 | 30-45 | ≤450 | |||||
| GM-100 | 114.3 | 100 | 30-45 | ≤450 | |||||
| GM-98 | 114.3 | 98 | 30-42 | ≤430 | BAKER 20# 10# | ||||
| GM-88 | 97-102 | 88 | 22-35 | ≤430 | |||||
| GM-80 | 88.3-90.1 | 80 | 20-25 | ≤430 | BAKER 10# | ||||
| GM-66 | 76 | 66 | 20-25 | ≤430 | BAKER 5# | ||||
Remark | Soluble bridge plugs of various sizes, structures and temperature grades can be customized according to customer need | ||||||||
During plug-and-perf completion system, Grifco made frac plugs are reliable and completely dissolvable after fracturing, with a full bore accessed, eiminating need for drilling after fracturing. It saves construction time and reduces operating costs. Magic dissolvable frac plugs can meet different requirements under various well conditions with temperature ranging from 30 to 150℃. Dissolvable frac plug of different sizes, structures and temperature ratings can be customized according to customer needs.
Double slip, single slip, all metal seal, ball cage and other structural options.
Special coating process, resistant to high concentration hydrochloric acid, suitable for acid pressing.
High strength of body material.
Completely dissolve, controllable dissolution speed, water soluble.
Short length, small outer diameter, large inner diameter, fast pumping speed.
Anti-pre-set design.
Type | Casing ID （㎜） | OD （㎜） | ID （㎜） | Length （㎜） | Pressure （MPa） | Temperature （℃ ） | Dissolved liquid | Dissolved time | Setting Tool |
| GM-110 | 121.4-124.3 | 110 | 30-50 | ≤450 | 70 | Low temperature 30 | Clear water | 3-7 Day | BAKER 20# |
| GM-108 | 121.3 | 108 | 30-50 | ≤450 | High temperature 150 | ||||
| GM-104 | 118.6 | 104 | 30-45 | ≤450 | |||||
| GM-102 | 114.3 | 102 | 30-45 | ≤450 | |||||
| GM-100 | 114.3 | 100 | 30-45 | ≤450 | |||||
| GM-98 | 114.3 | 98 | 30-42 | ≤430 | BAKER 20# 10# | ||||
| GM-88 | 97-102 | 88 | 22-35 | ≤430 | |||||
| GM-80 | 88.3-90.1 | 80 | 20-25 | ≤430 | BAKER 10# | ||||
| GM-66 | 76 | 66 | 20-25 | ≤430 | BAKER 5# | ||||
Remark | Soluble bridge plugs of various sizes, structures and temperature grades can be customized according to customer need | ||||||||
